- Brand: Bürkert

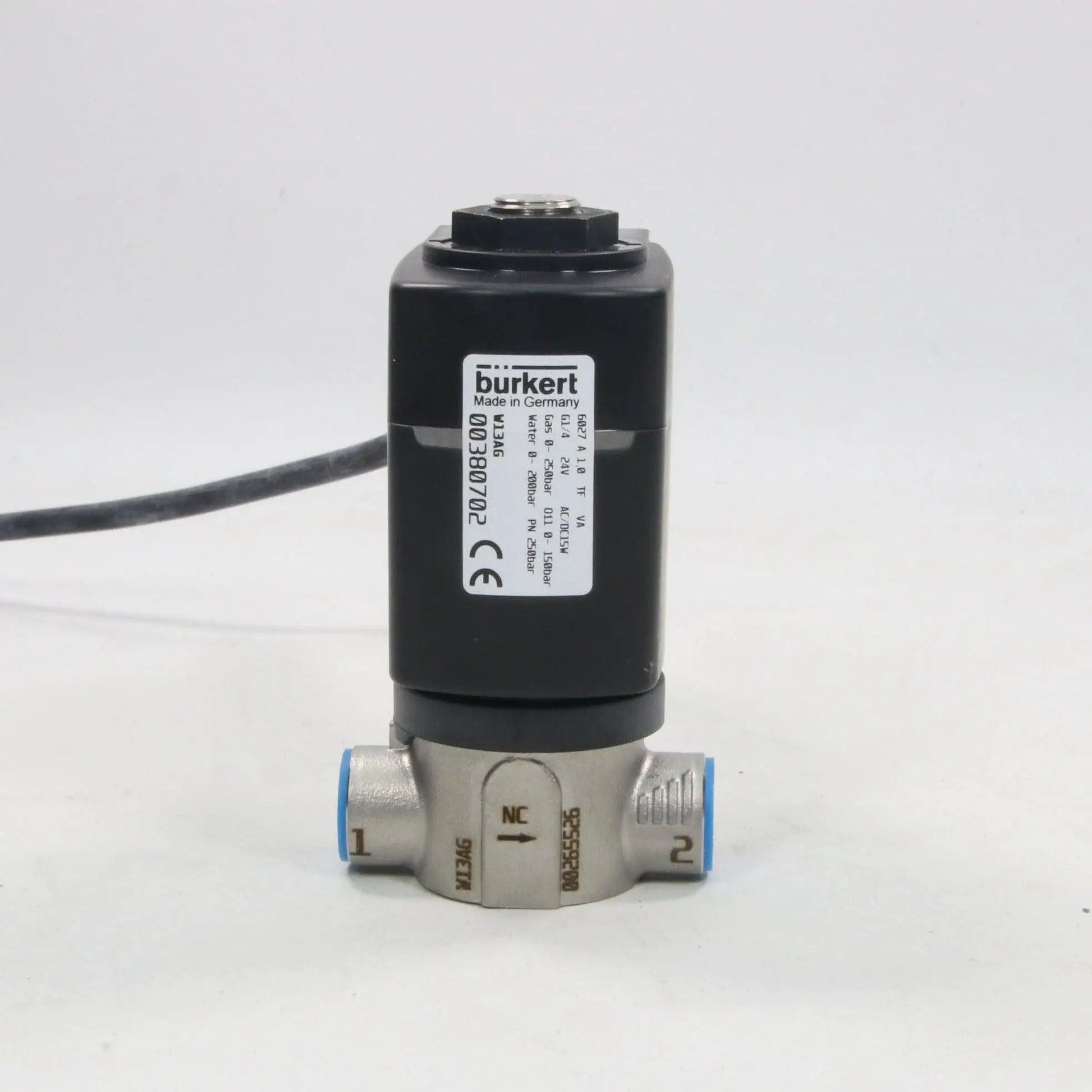

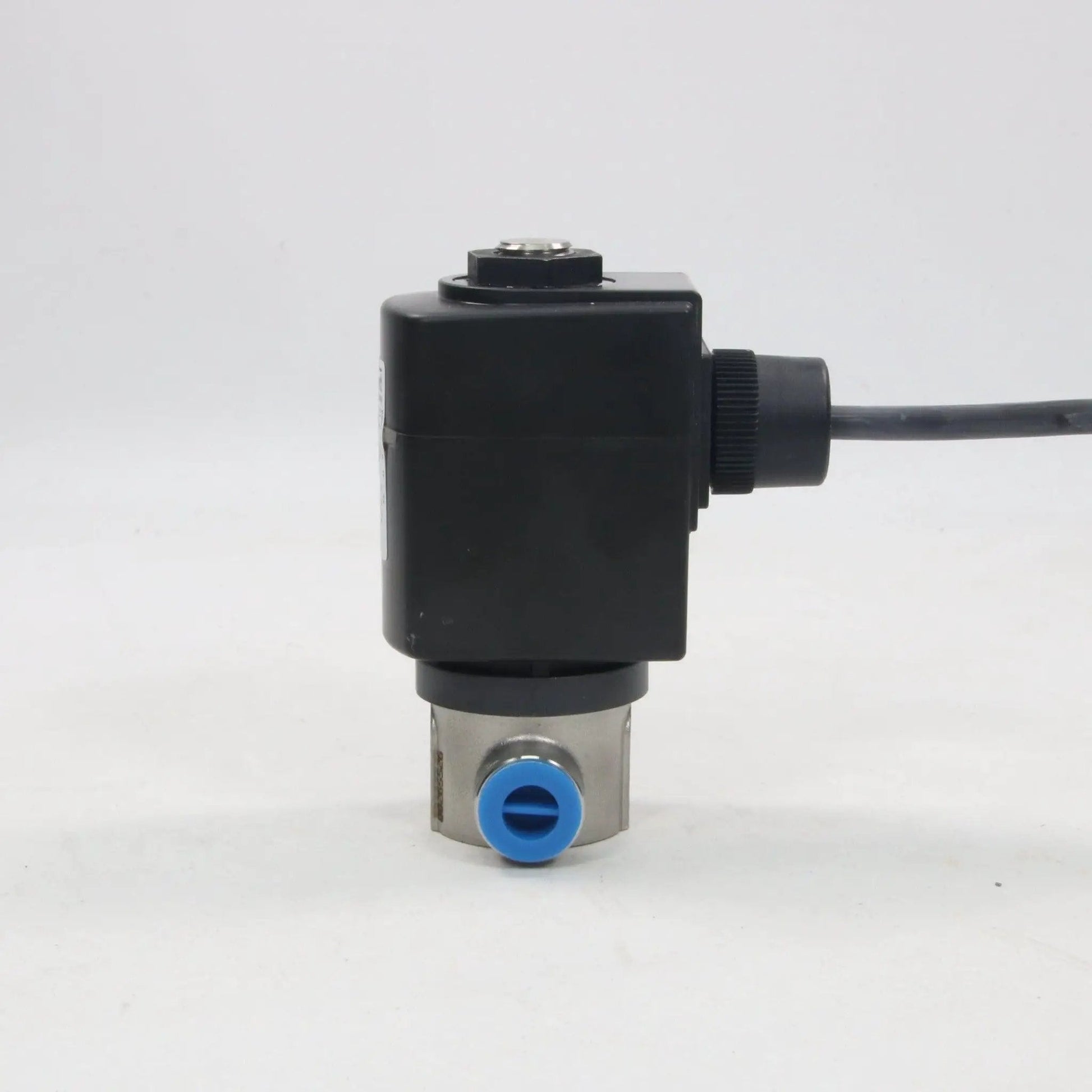

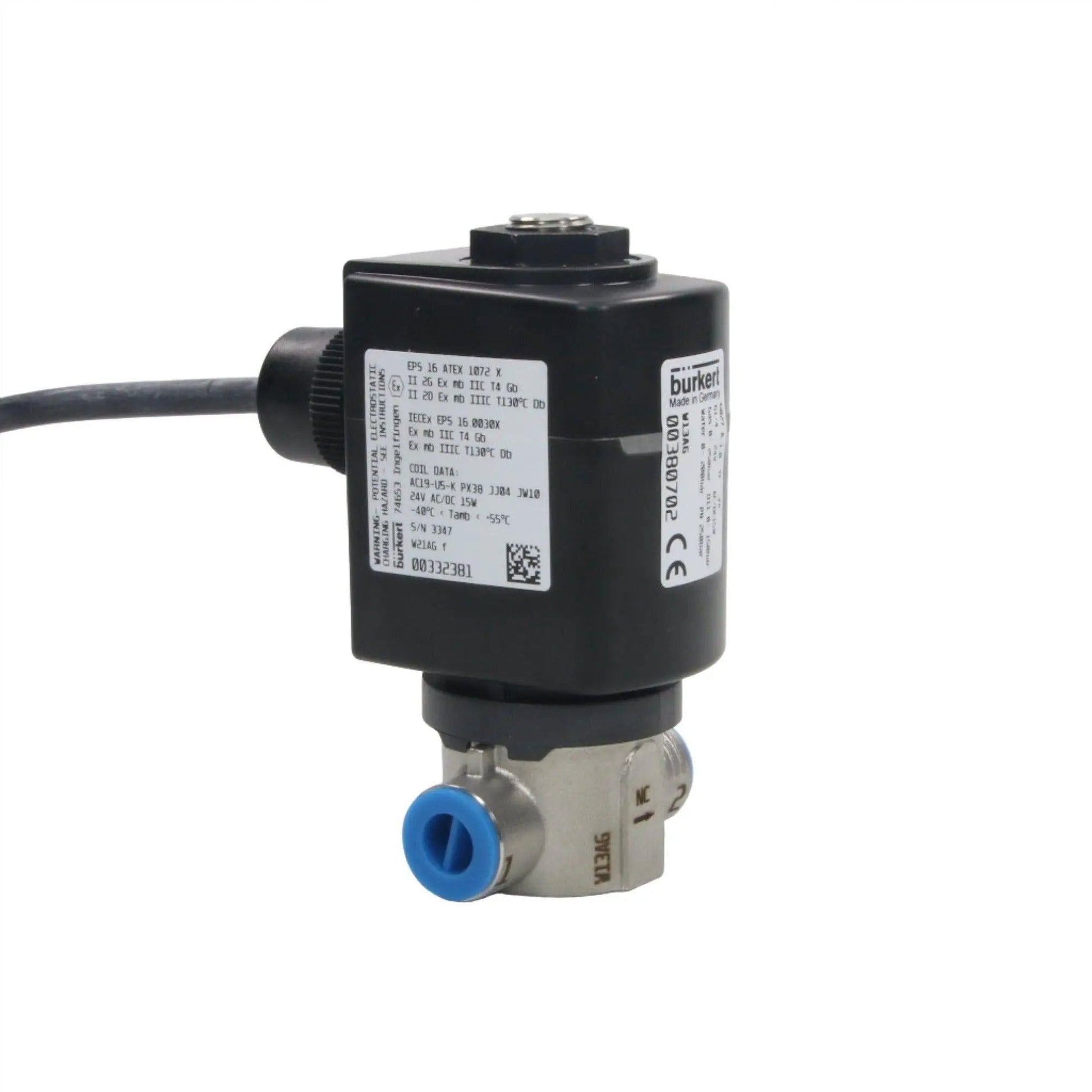

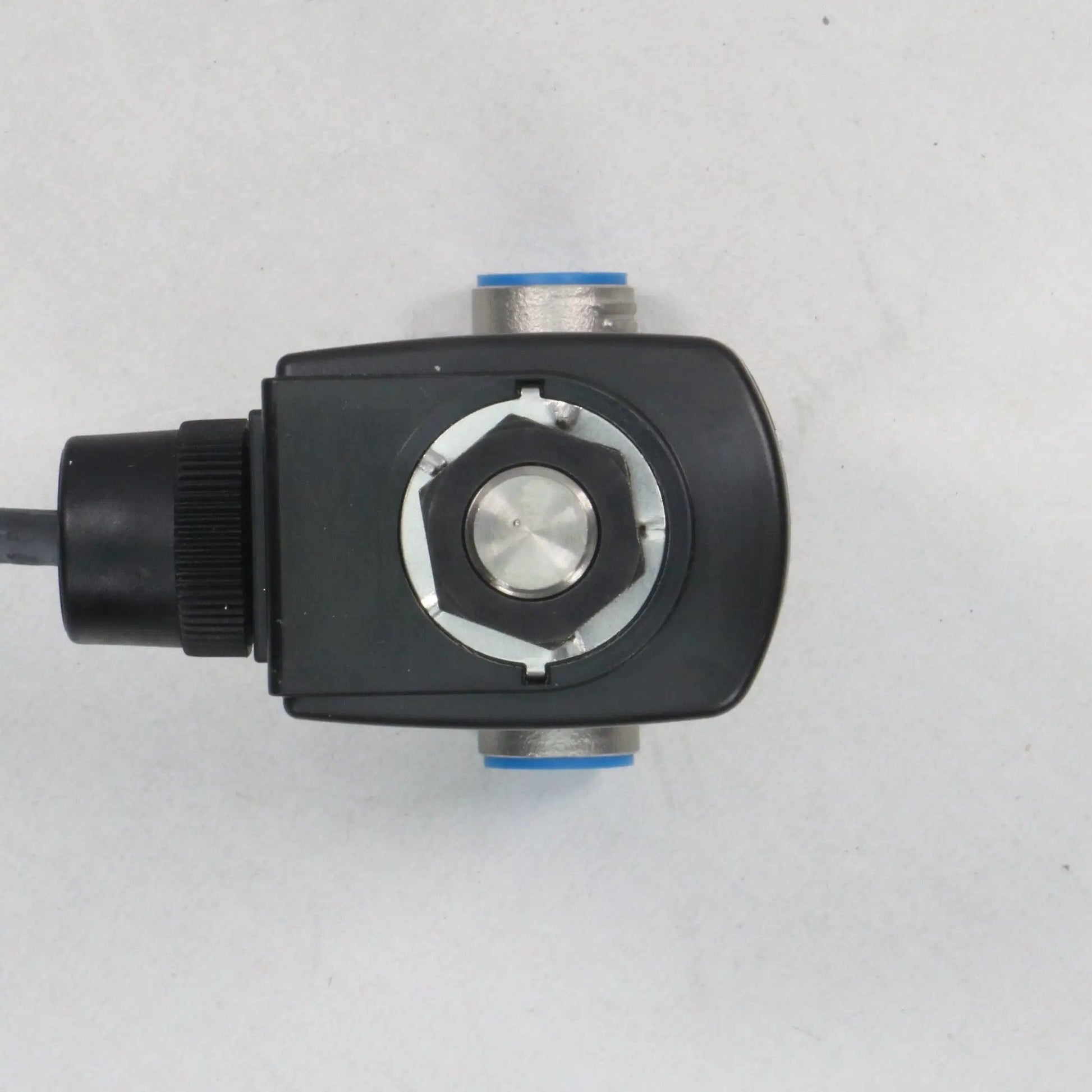

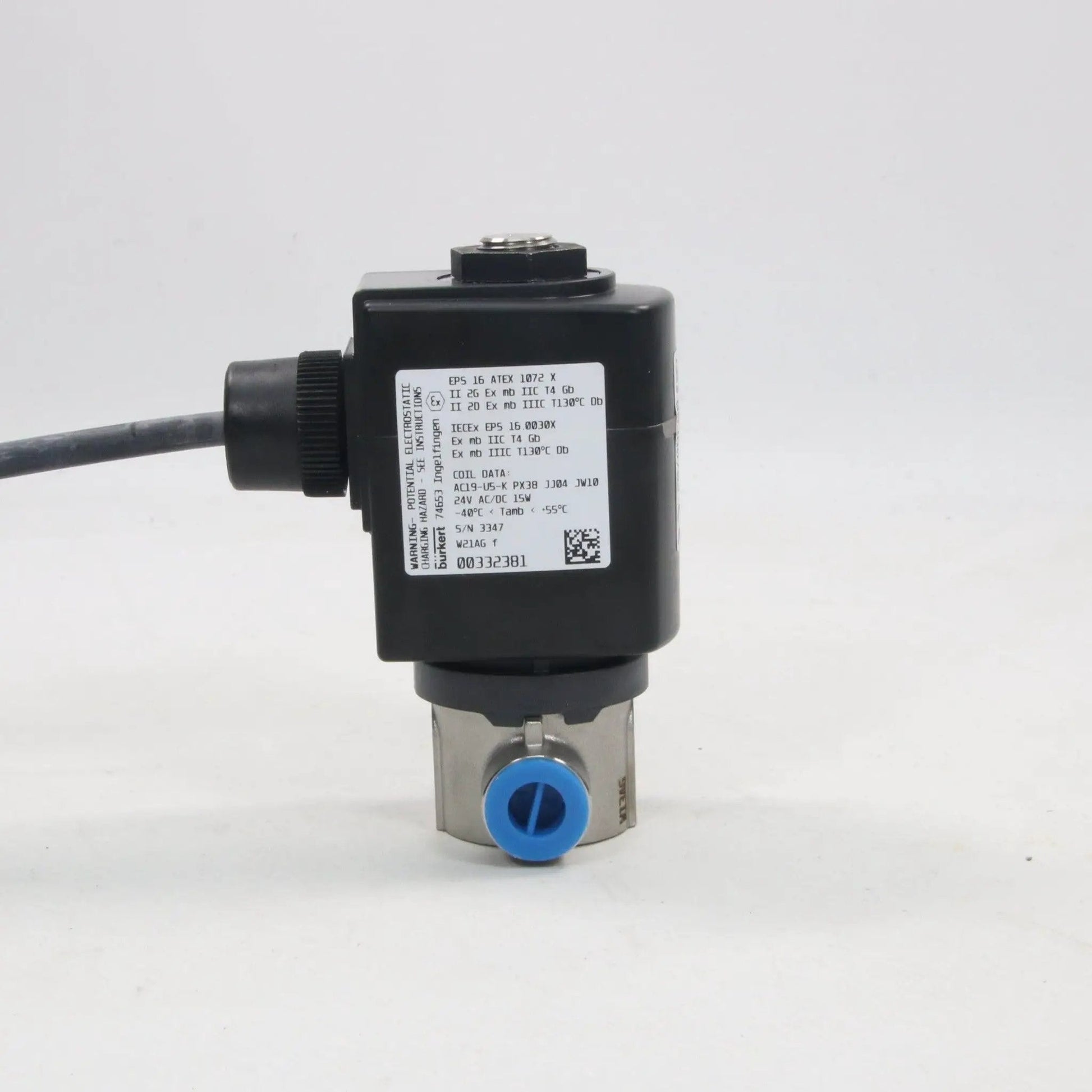

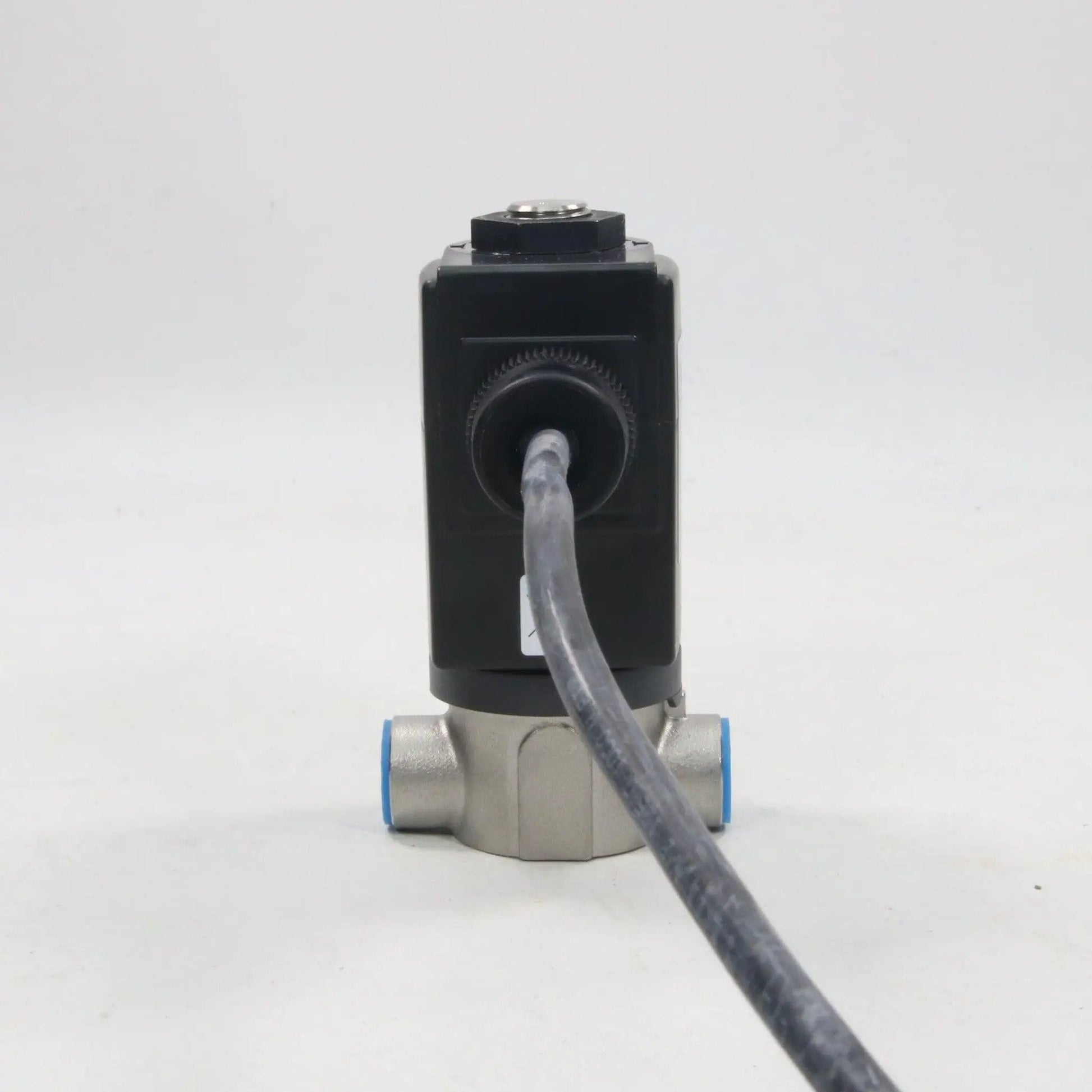

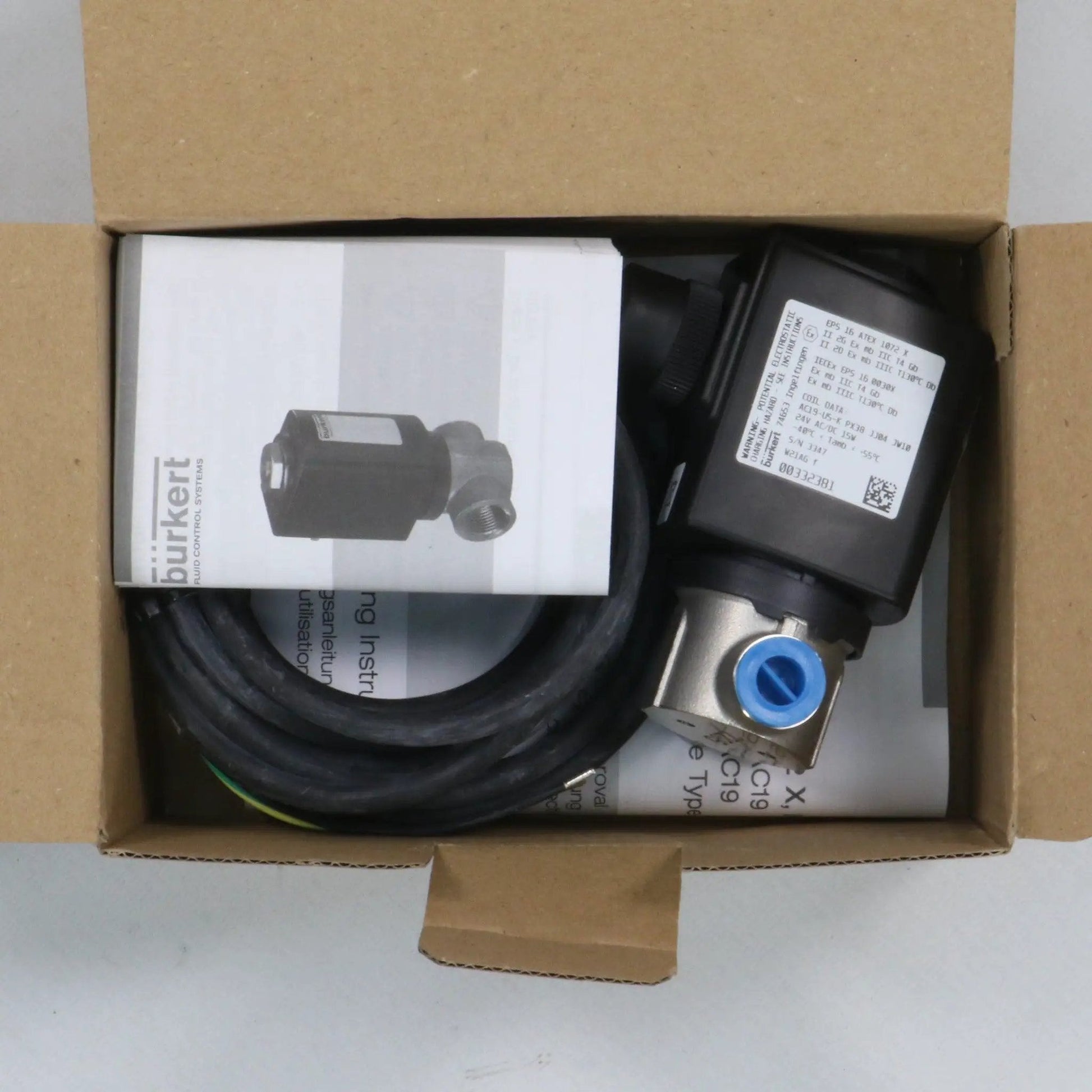

- Model: Type 6027 High-Pressure Solenoid Valve
- Type: Direct-Acting 2/2-Way Plunger Solenoid Valve
- Part number: 00380702
- Technical specs:
- Circuit Function: 2/2-Way, Normally Closed
- Actuation Principle: Direct-acting plunger design with welded plunger guide tube for high pressure integrity
- Orifice Size (DN): 1.0 mm (DN 1.0)
- Pressure Range: 0 to 150 bar (oil), 0 to 200 bar (water), 0 to 250 bar (gas)
- Supply Voltage: 24 V DC
- Process Connection: G 1/4" female threaded port
- Housing / Body Material: Stainless Steel
- Seal Material / Seat: Ceramic seal technology
- Fluid Temperature Range: -10 °C to +80 °C
- Protection Rating: IP65 (with standard DIN EN 175301-803 Form A plug interface)
Weight: 1.1 kg
Dimensions: 180 x 120 x 80 mm
Country of origin: Germany
HS Code: 8481.80.79
