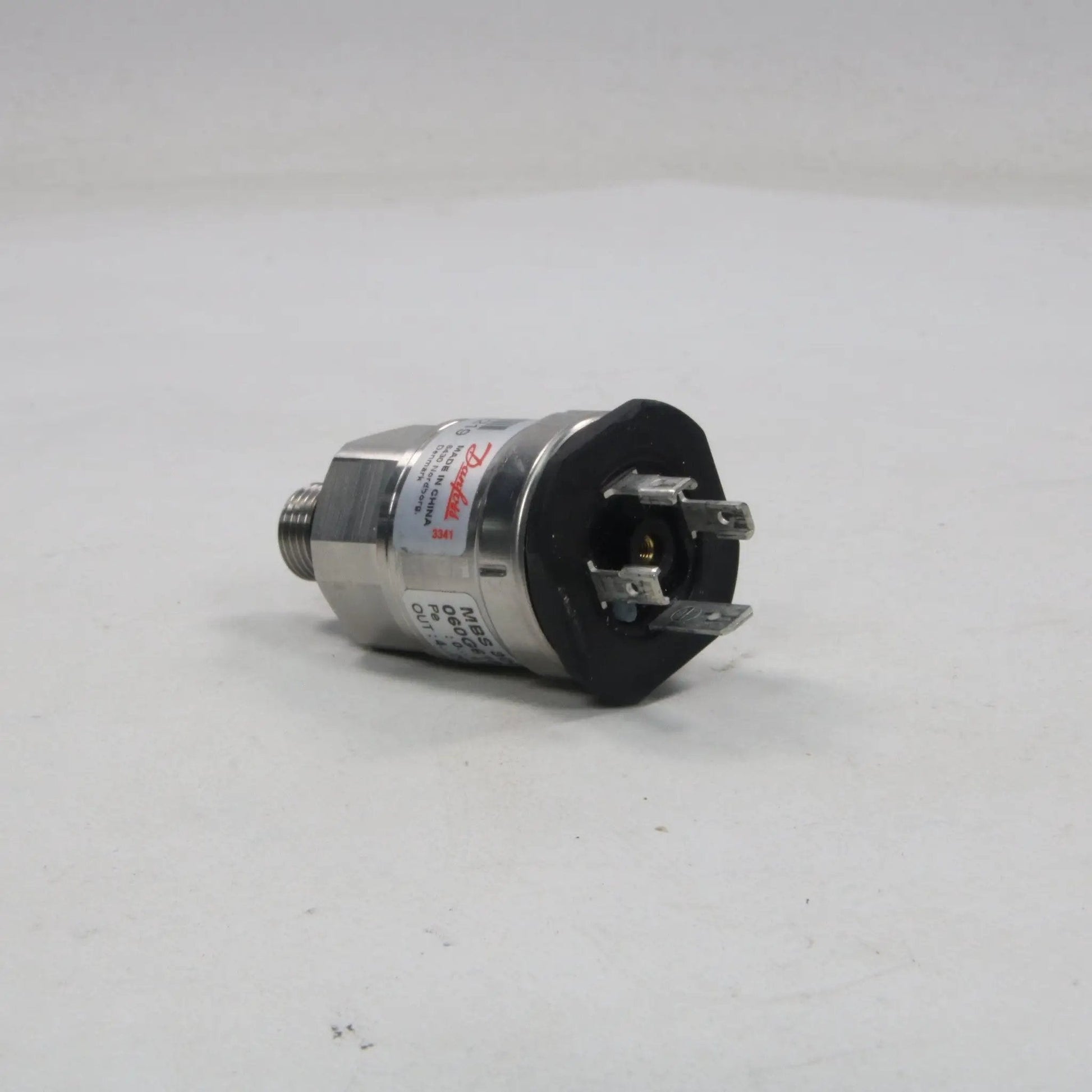

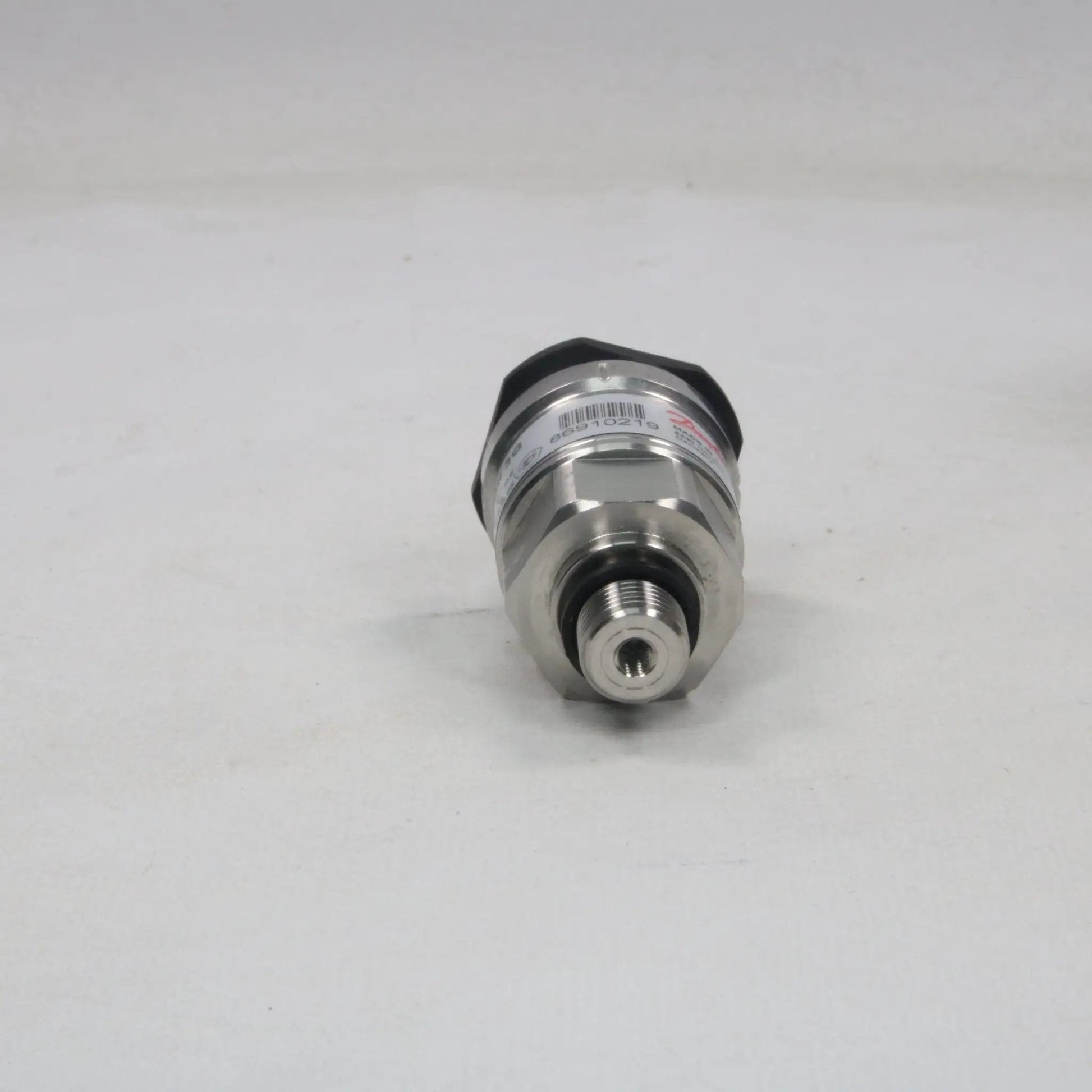

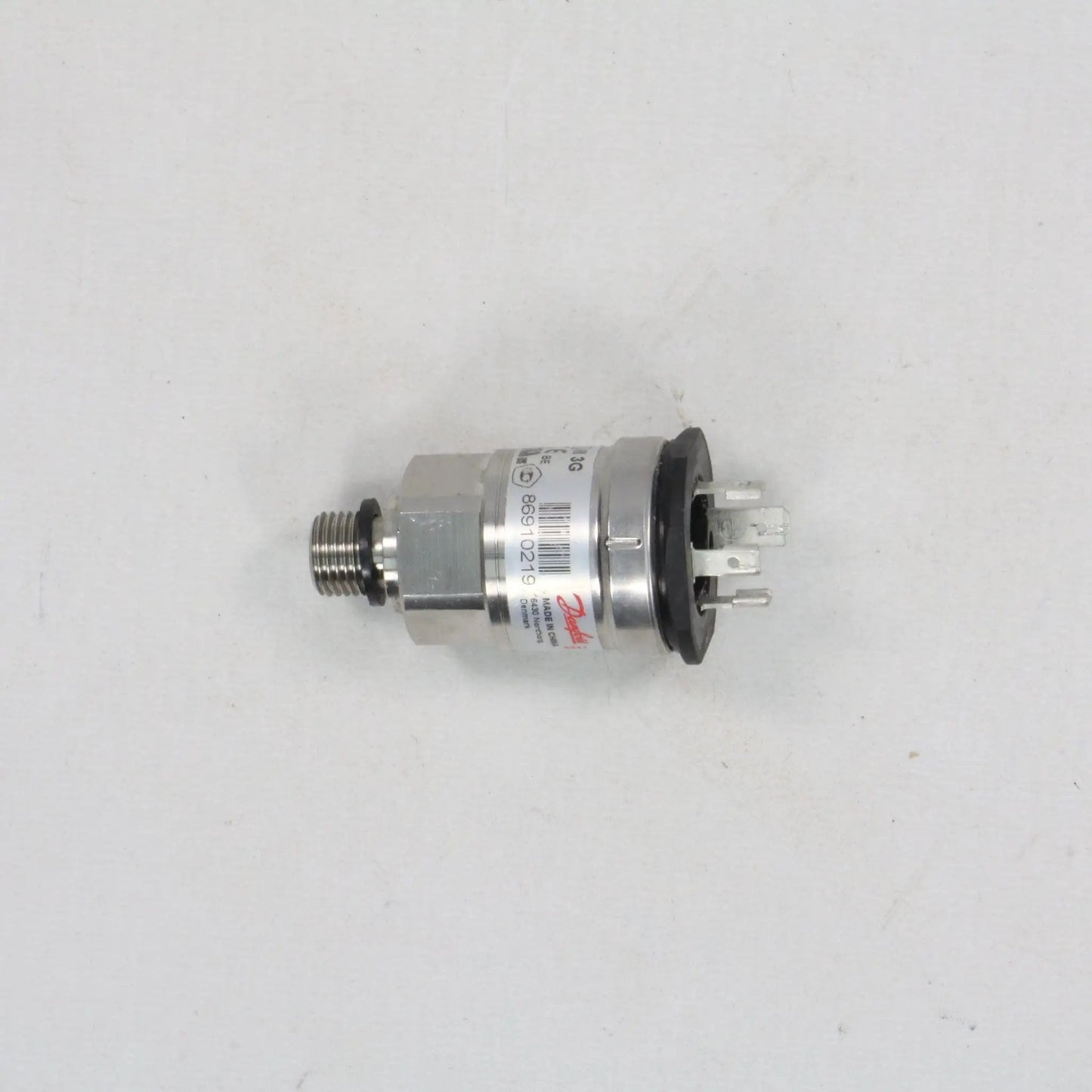

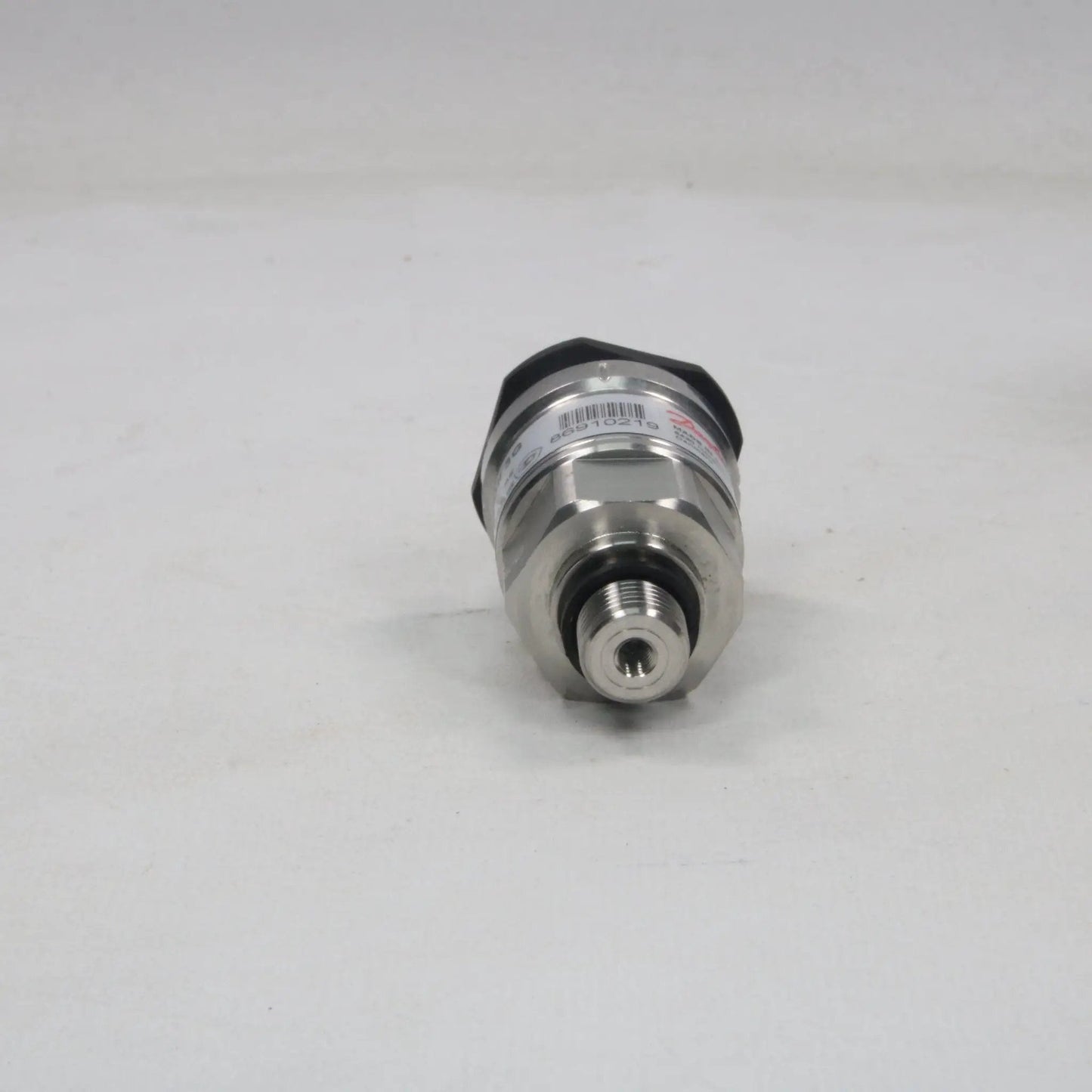

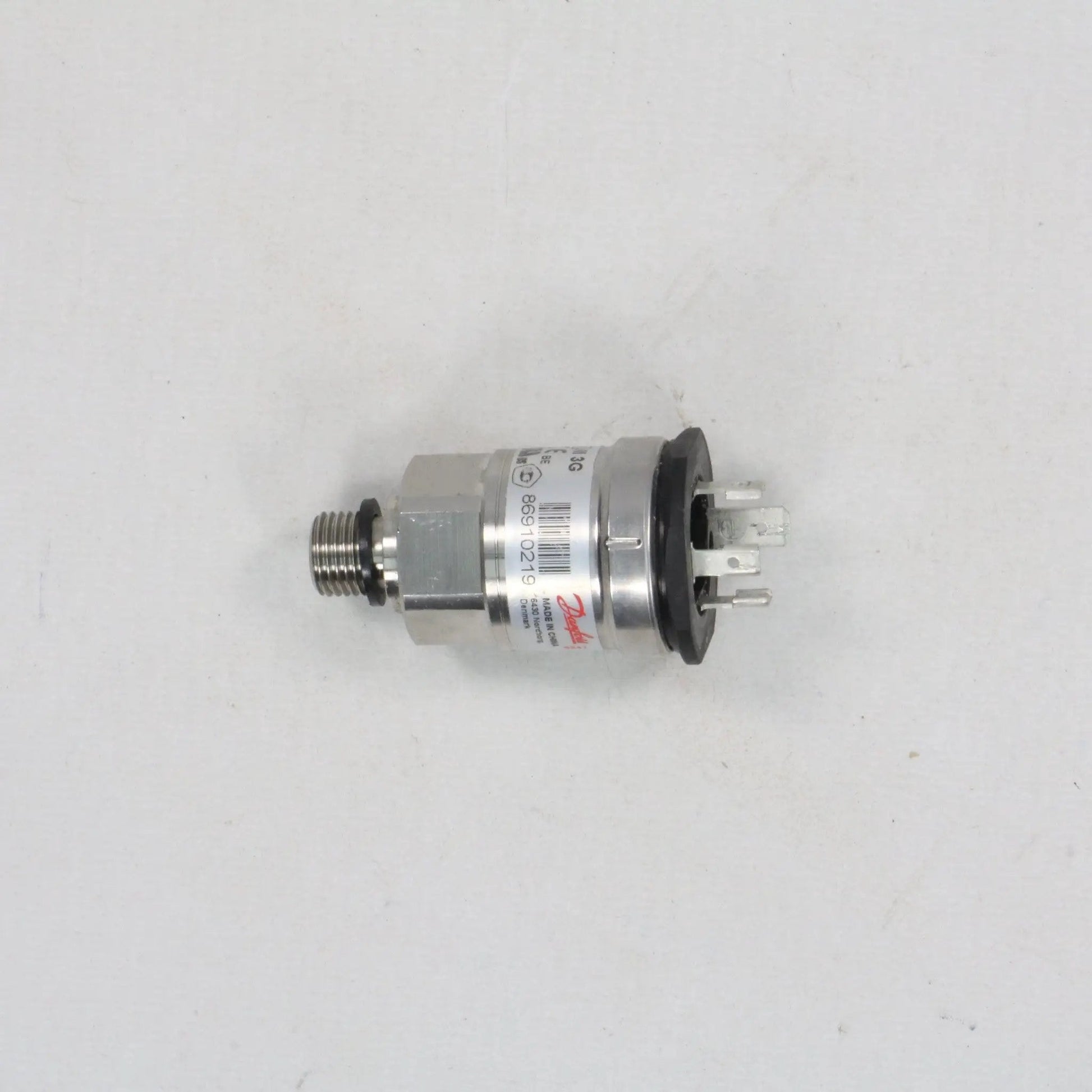

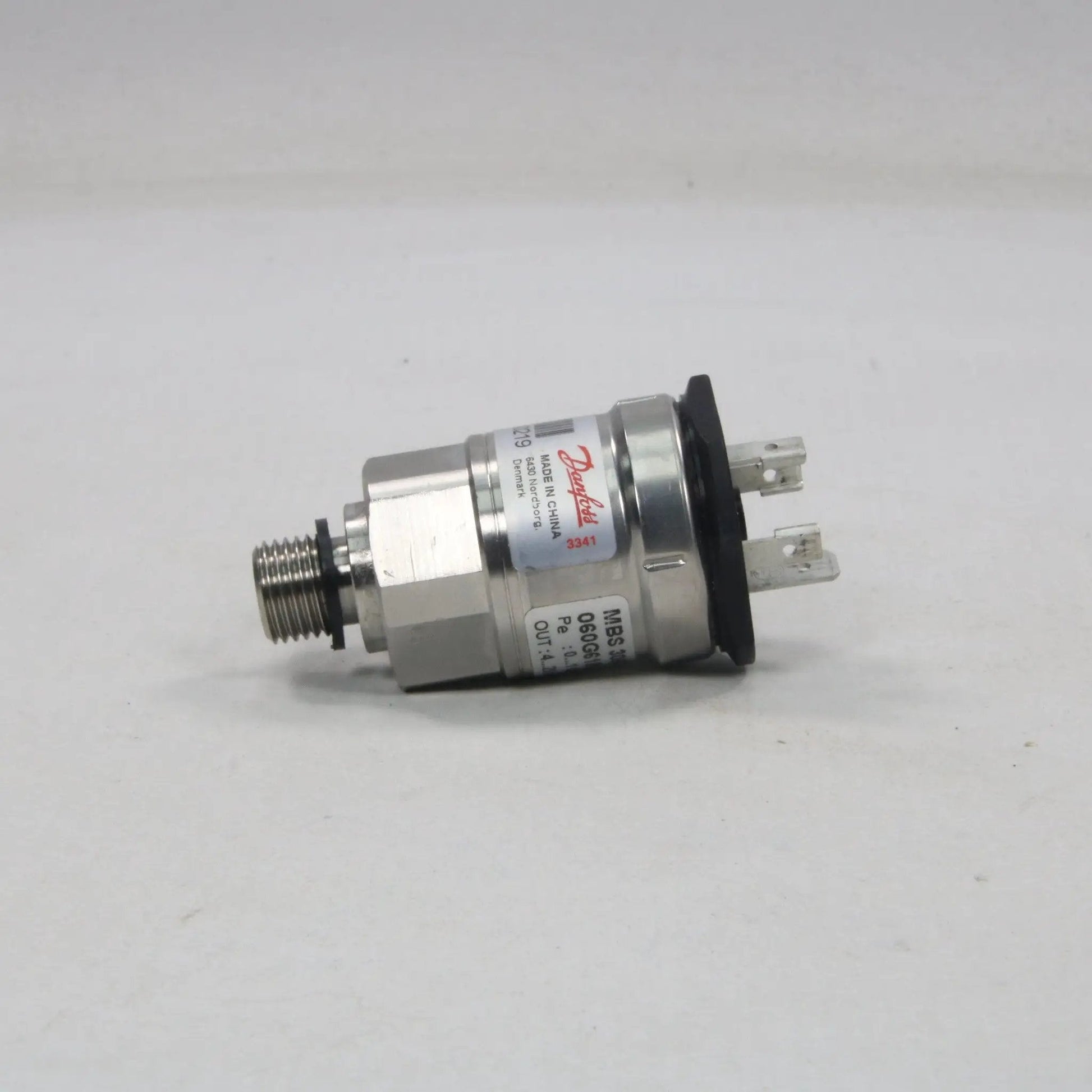

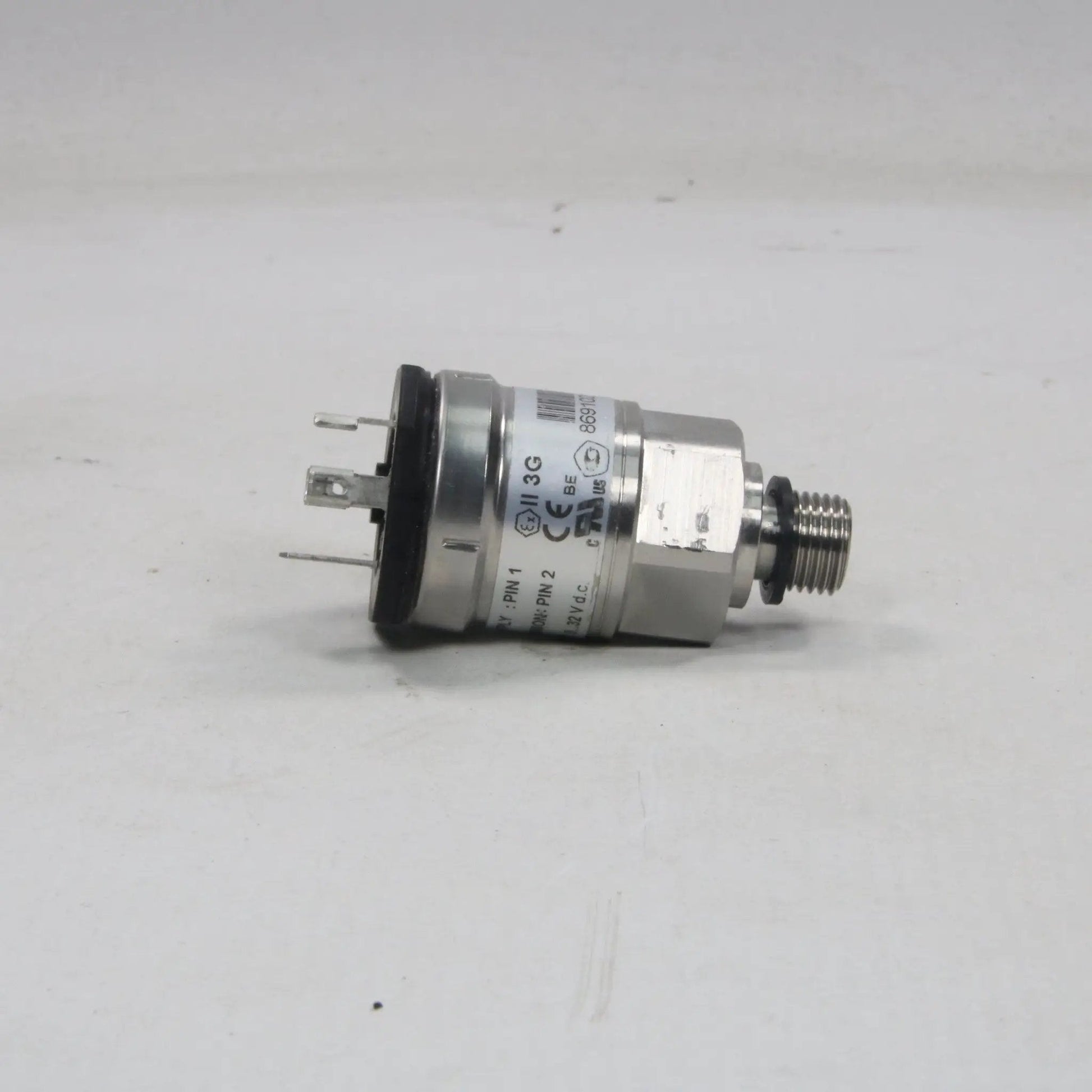

- Brand: Danfoss
- Model: MBS 3050
- Type: Pressure Transmitter
- Part Number: 060G6180
- Technical Specs:
- Core Application: Specifically designed for heavy-duty hydraulic and industrial applications subject to severe medium conditions like cavitation, liquid hammer, or high-pressure spikes.
- Pressure Range: 0.0 to 1.0 bar
- Output Signal: 4 to 20 mA (2-wire loop-powered configuration)
- Supply Voltage: 9 to 32 V DC

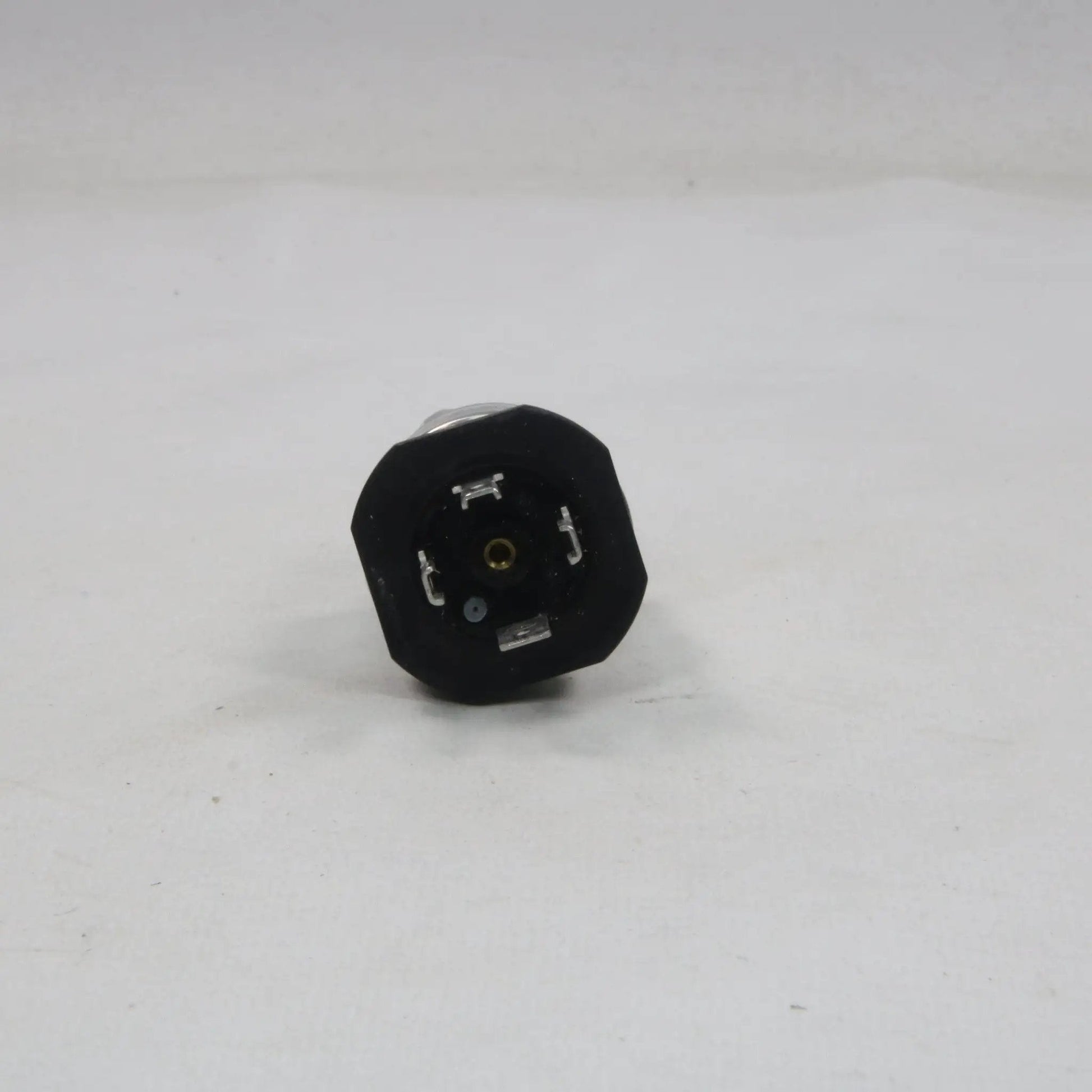

- Electrical Connection: EN 175301-803-A
- Process Connection / Thread: G 1/4 A Male
- Wetted Materials: Stainless Steel AISI 316L (1.4404)
- Enclosure / Housing Material: Stainless Steel AISI 316L (1.4404)
- Accuracy (Total Error Band): ±0.5% FS (typical) / ±1.0% FS (maximum)
- Non-Linearity (BFSL): ≤ ±0.2% FS
- Response Time: < 4 ms
- Overload Pressure (Static Proof): 6 bar
- Burst Pressure: 6 bar (max static rating / burst >6x FS)
- Operating Temperature Range (Medium): -40°C to +85°C
- Ambient Temperature Range: -40°C to +85°C
- Compensated Temperature Range: 0°C to +80°C
- Enclosure Protection Rating: IP65
- Vibration Stability: 20 g (25 Hz – 2 kHz, sinusoidal) conforming to IEC 60068-2-6
- Shock Resistance: 500 g / 1 ms conforming to IEC 60068-2-27
Weight: 200 g
Dimensions: 100 x 50 x 25 mm
Country of Origin: China / Denmark
HS Code: 9026.20.20
