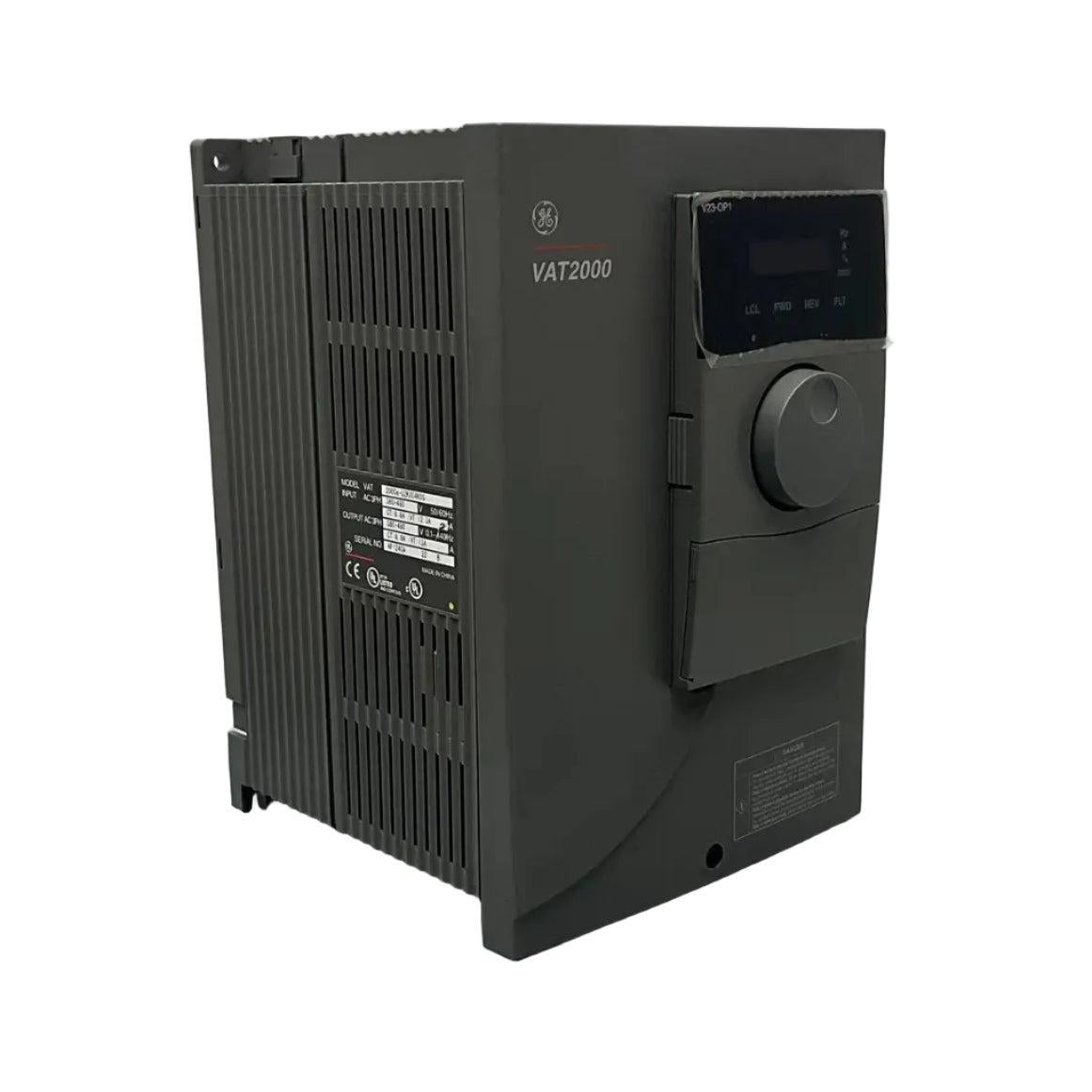

- Brand: GE General Electric
- Model: VAT2000 (VAT2000e series)
- Type: Variable Frequency Drive / AC Inverter Drive
- Part number: U2KX040S
- Technical specs:

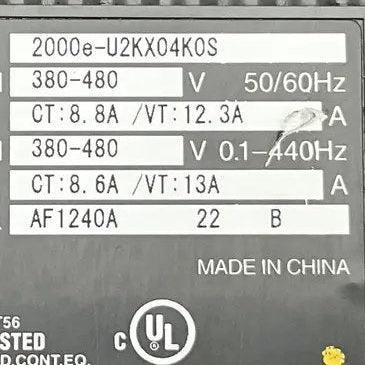

- Input Voltage: 3-Phase, 380V to 480V AC (+10% / -15%), 50/60 Hz
- Output Power: 4.0 kW / 5.5 HP (Heavy Duty) / 5.5 kW (Normal / Variable Torque Duty)
- Rated Output Current: 8.6 A (Heavy Duty) / 13 A (Normal Duty)
- Output Frequency Range: 0.1 Hz to 440 Hz (V/f mode) / 0.1 Hz to 120 Hz (Vector control mode)
- Control Method: Sensorless Vector Control, Closed-Loop Vector, V/f Control, and Advanced Torque Control
- Overload Capacity: 150% rated output current for 60 seconds
- Protection Rating: IP20 / NEMA 1 enclosure
- Key Features: Built-in removable LED keypad display, PID control, dynamic braking capabilities, RS485 Modbus RTU communication
Weight: 4.5 kg
Dimensions: 245 x 160 x 170 mm
Country of origin: China
HS Code: 8504.40.90
