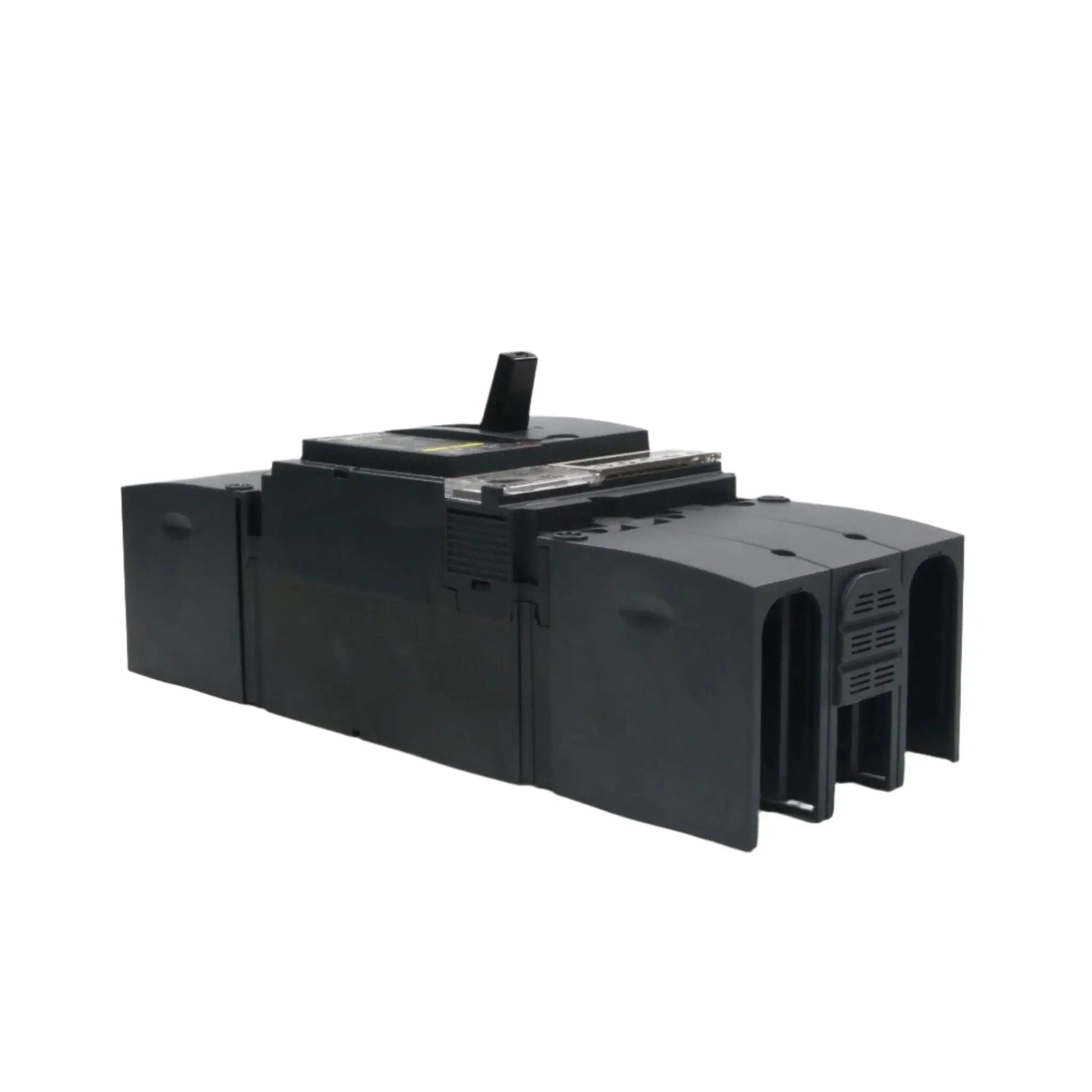

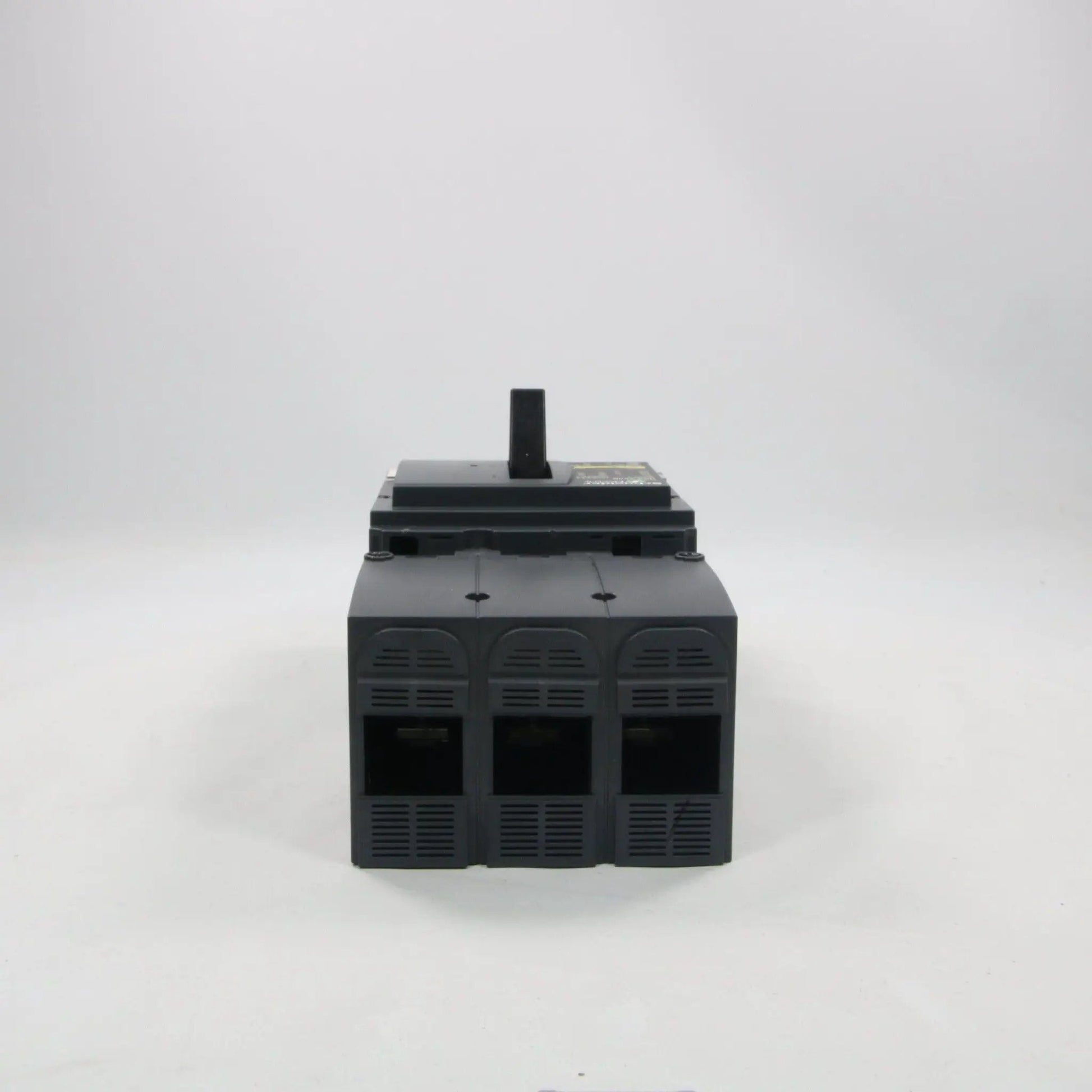

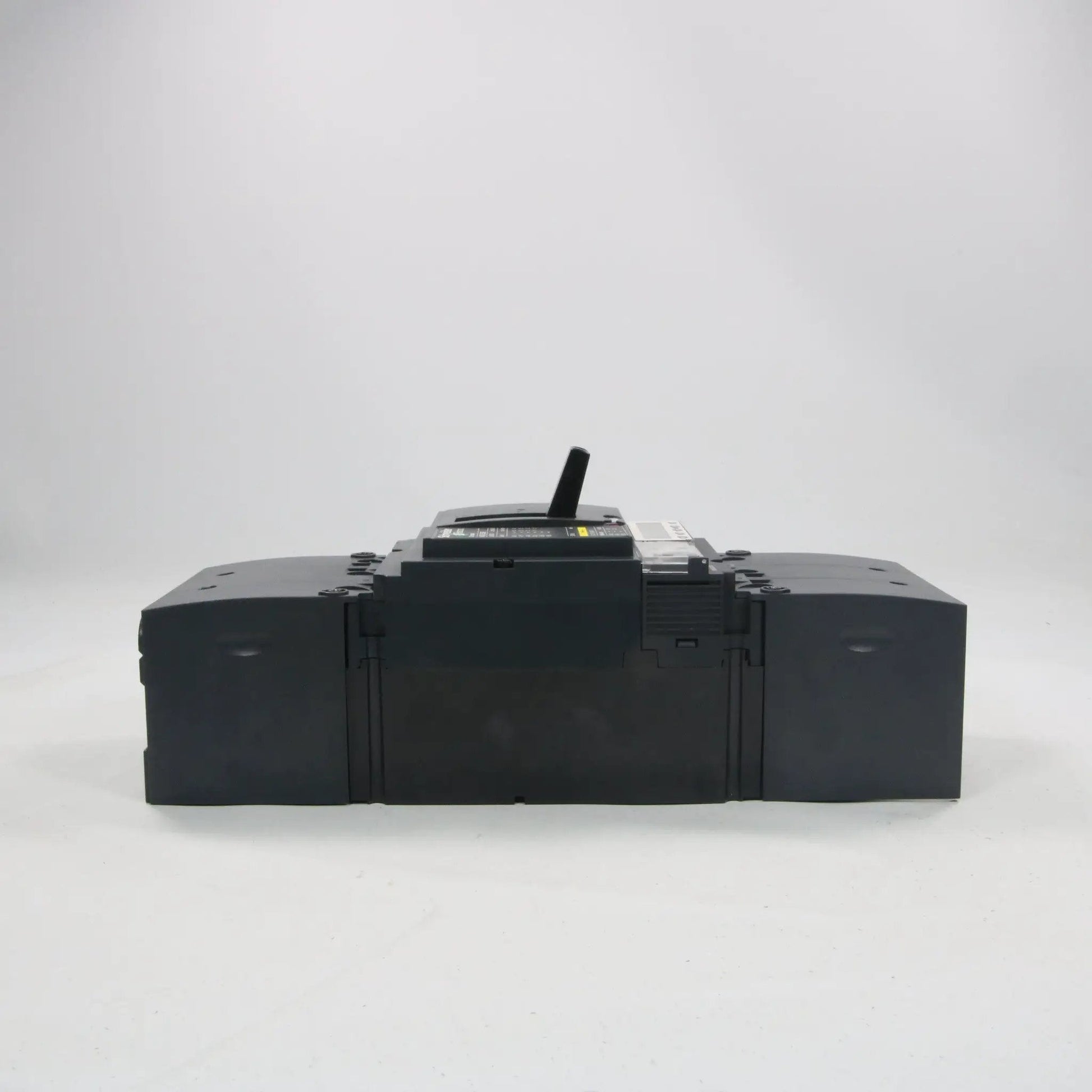

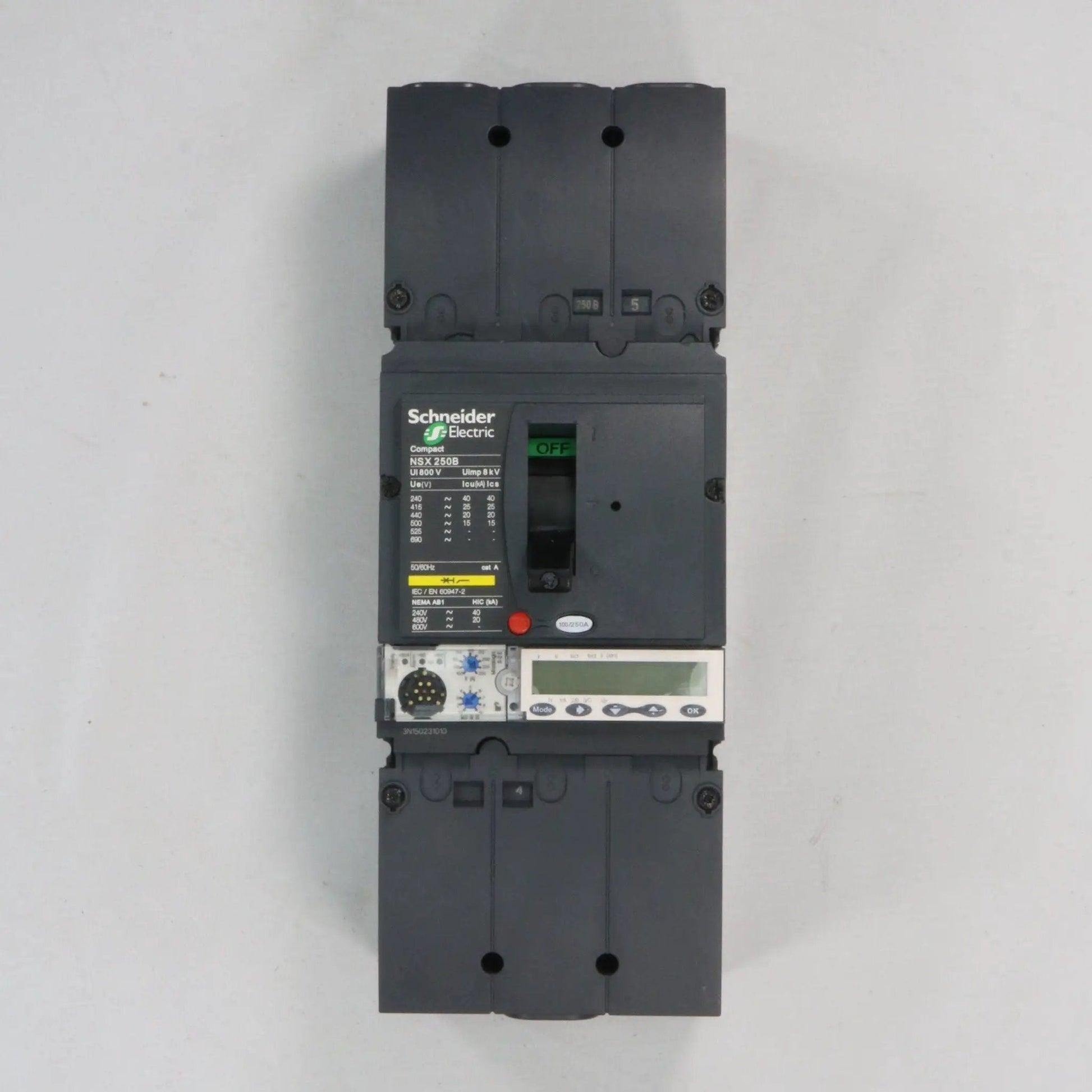

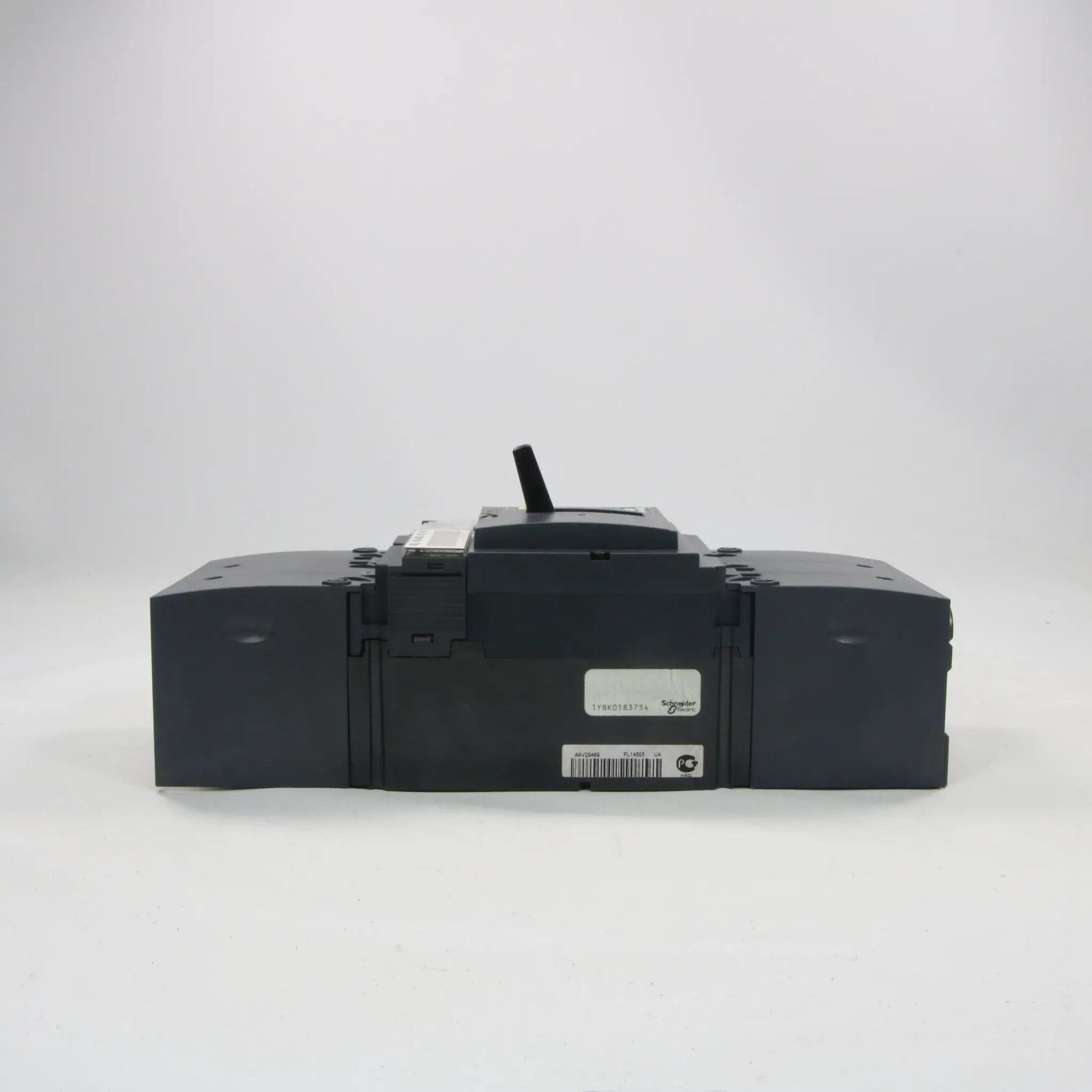

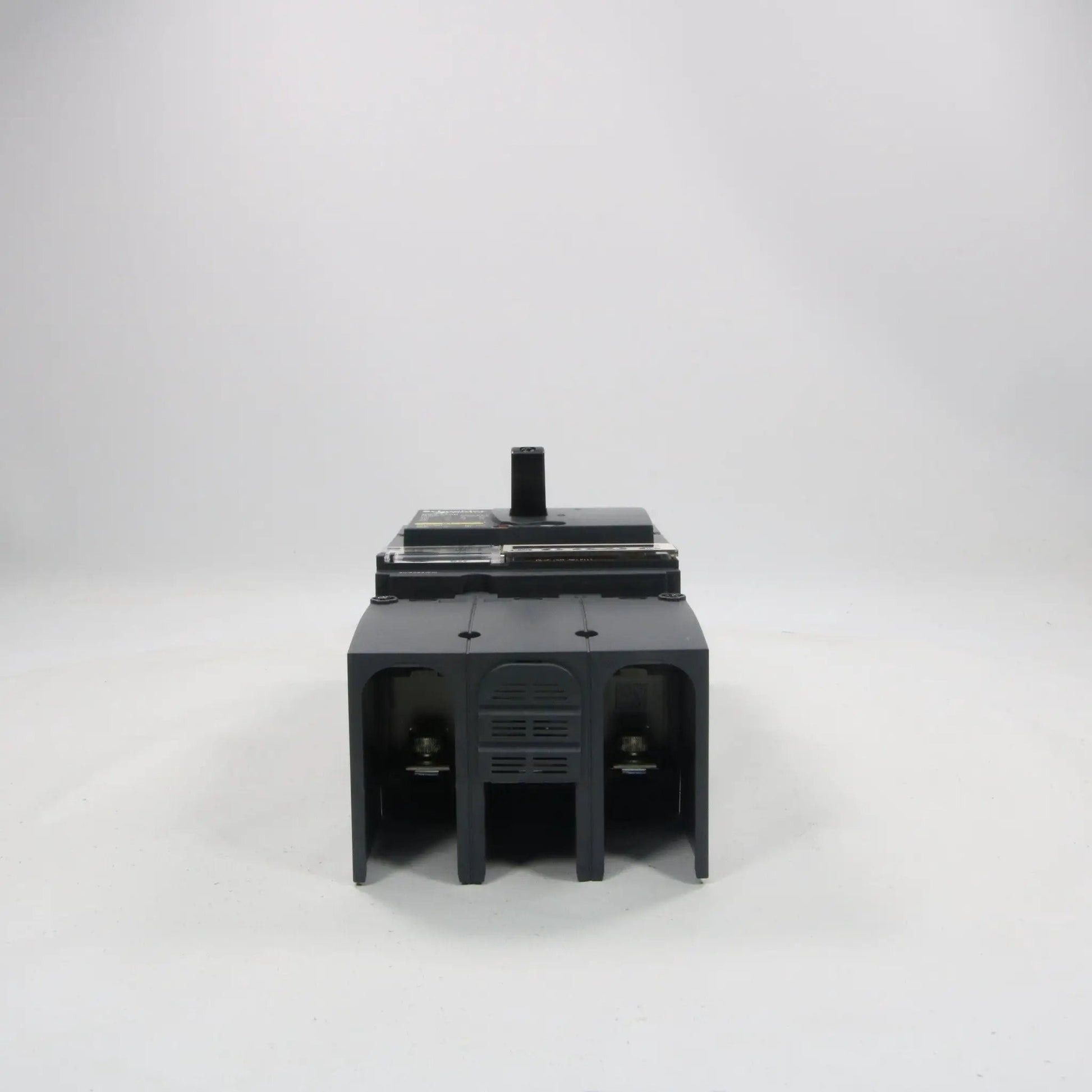

Schneider Electric Compact NSX 250B Circuit Breaker
Schneider Electric Compact NSX 250B Circuit Breaker
Kan beschikbaarheid voor afhalen niet laden
Levering:
Nederland & België via webshop.Andere landen? Neem contact met ons op voor verzending.
Verkoop en verzending door Used Industrial Parts
Op de bedrijfspagina van de aanbieder zijn ook de algemene- en verzendgegevens te vinden
De rollen van Laskoning.com en van onze partner
Onze partner is een professionele verkoper die via www.laskoning.com verkoopt. Wat houdt dit precies in?
De belangrijkste verantwoordelijkheden van onze partner:
Biedt het product te koop aan op www.laskoning.com
Verpakt het product eventueel met pakbon na het ontvangen van een order
Levert het product aan de klant
Mailt de factuur op aanvraag
Ontvangt en beoordeelt geretourneerde producten en handelt dit verder af
Zorgt voor de uitvoering van de wettelijke garantie (bijv. reparatie of vervanging als het artikel niet goed is) en/of extra garantie.
De partner blijft altijd zelf verantwoordelijk voor bovenstaande taken.
De belangrijkste verantwoordelijkheden van Laskoning.com:
zorgt dat jij via www.laskoning.com kunt bestellen en betalen zoals je bij ons gewend bent
Schneider Electric Compact NSX250B Circuit Breaker with MicroLogic 5.2 Control Unit Specifications:
- Product Type: Molded Case Circuit Breaker (MCCB)
- Manufacturer: Schneider Electric
- Model: Compact NSX250B with MicroLogic 5.2
- Device Application: Distribution protection
- Poles Description: 3P 3d
- Rated Current (In): 250 A at 40 °C
- Trip Unit Name: MicroLogic 5.2 E (Ammeter or Energy-metering )
- Trip Unit Technology: Electronic
- Trip Unit Rating: 100–250 A (adjustable)
-
Protection Type:
- L: Overload protection (long time)
- S: Short-time short-circuit protection (adjustable delay)
- I: Instantaneous short-circuit protection
- Rated Insulation Voltage (Ui): 800 V AC 50/60 Hz
- Rated Impulse Withstand Voltage (Uimp): 8 kV
- Rated Operational Voltage (Ue): 690 V AC 50/60 Hz
- Network Type: AC
- Network Frequency: 50/60 Hz

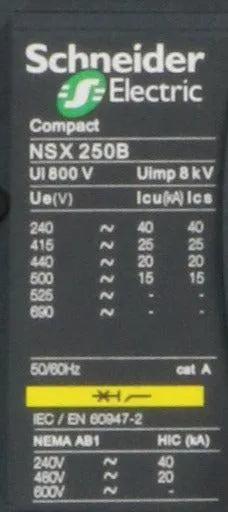

- Breaking Capacity Code: B (25 kA at 415 V AC)
-
Breaking Capacity (Icu):
- 40 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
- 25 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
- 20 kA at 440 V AC 50/60 Hz (IEC 60947-2)
- 15 kA at 500 V AC 50/60 Hz (IEC 60947-2)
-
Rated Service Breaking Capacity (Ics):
- 40 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
- 25 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
- 20 kA at 440 V AC 50/60 Hz (IEC 60947-2)
- 15 kA at 500 V AC 50/60 Hz (IEC 60947-2)
- Suitability for Isolation: Yes (EN/IEC 60947-2)
- Utilization Category: Category A
- Control Type: Toggle
- Mounting Mode: Fixed
- Mounting Support: Backplate
- Mounting Position: Horizontal, vertical, or flat on the back
- Connection Type: Front connection (upside and downside)
- Connection Pitch: 35 mm
- Long-Time Pick-Up Adjustment Type (Ir): Adjustable via dials or keypad (9 settings)
- Long-Time Pick-Up Adjustment Range: 100–250 A
- Long-Time Protection Delay Adjustment Type (tr): Adjustable
-
Long-Time Protection Delay Adjustment Range:
- 400 s at 1.5 x Ir
- 16 s at 6 x Ir
- 11 s at 7.2 x Ir
- Thermal Memory: 20 minutes before and after tripping
- Short-Time Pick-Up Adjustment Type (Isd): Adjustable (9 settings)
- Short-Time Pick-Up Adjustment Range: 1.5–10 x Ir
- Short-Time Protection Delay Adjustment Type (tsd): Adjustable
- Short-Time Protection Delay Adjustment Range: 0–0.4 s
- I²t ON/OFF: Selectable for short-time protection curve
- Instantaneous Pick-Up Adjustment Type (Ii): Adjustable
- Display Type: LCD (for settings and measurements)
-
Local Signalling:
- Flashing LED (green): Ready to operate
- LED 90 % Ir (orange): Overload pre-alarm
- LED 105 % Ir (red): Overload alarm
-
Measurement Functions (MicroLogic 5.2 E):
- Instantaneous and demand current measurements
- Energy metering
- Kilowatt-hour metering
- Operational assistance (e.g., peak demand, customized alarms, operation counters)
- Communication: Configurable for communication with other devices (e.g., via EcoStruxure Power architecture)
- Mechanical Durability: 20,000 cycles
-
Electrical Durability:
- 20,000 cycles at 440 V In/2
- 10,000 cycles at 440 V In
- 10,000 cycles at 690 V In/2
- 5,000 cycles at 690 V In
- Power Dissipation per Pole: 17.6 W
- Number of Slots for Electrical Auxiliaries: 5 slots
- IP Degree of Protection: IP40 (IEC 60529)
- IK Degree of Protection: IK07 (IEC 62262)
- Electrical Shock Protection Class: Class II (front face)
- Pollution Degree: 3 (IEC 60664-1)
- Ambient Air Temperature for Operation: -25 to 70 °C
- Ambient Air Temperature for Storage: -50 to 85 °C
- Relative Humidity: 0–95 %
- Operating Altitude: 0–2000 m without derating; 2000–5000 m with derating
- Standards Compliance: EN/IEC 60947-2, CCC, EAC, marine specifications
- Product Certifications: IEC, CCC, EAC
-
Dimensions:
- Width: 105 mm (3P), 140 mm (4P)
- Height: 161 mm
- Depth: 86 mm
- Weight: Approximately 2.4 kg
- HS Code: 8536.20.90
- Country of Origin: France
