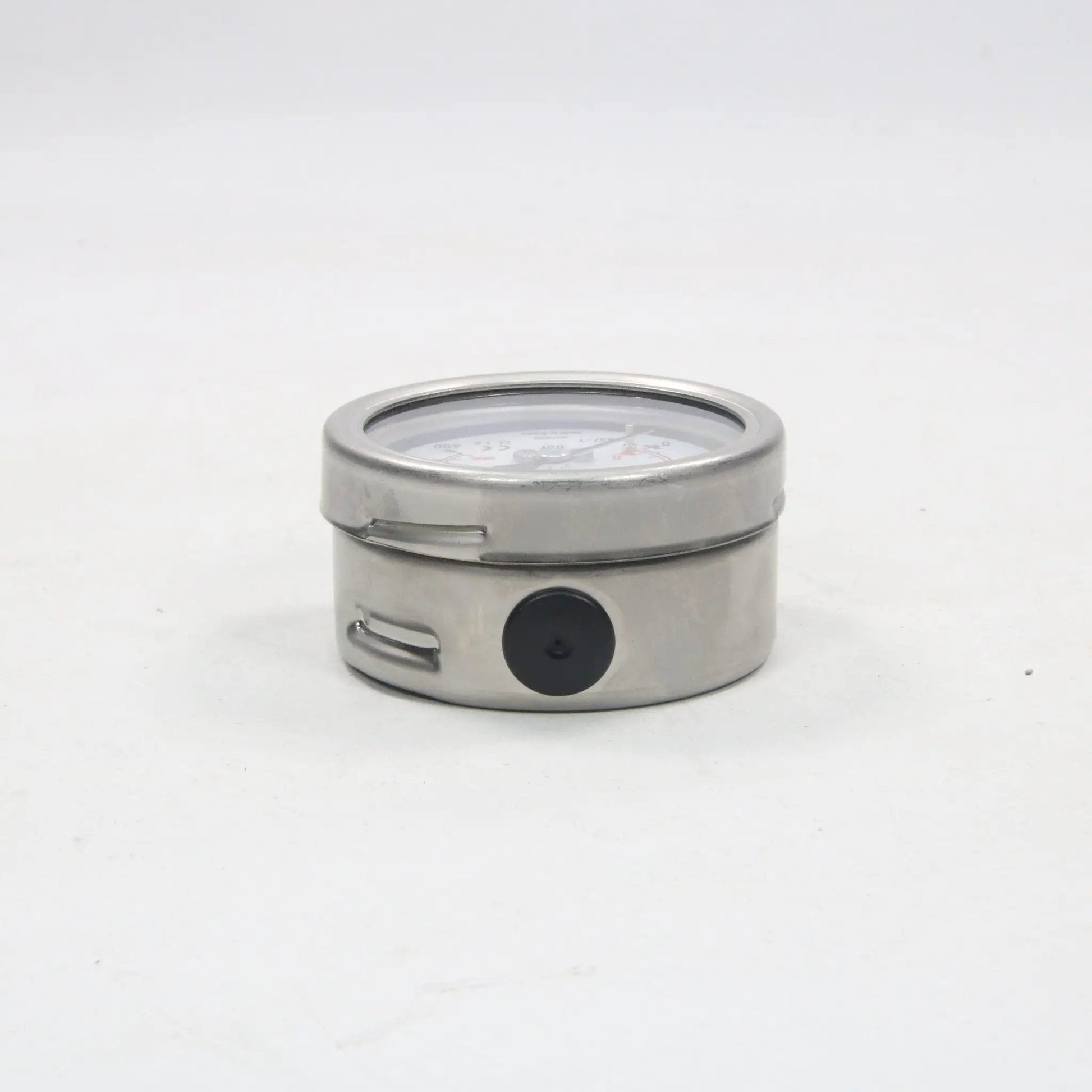

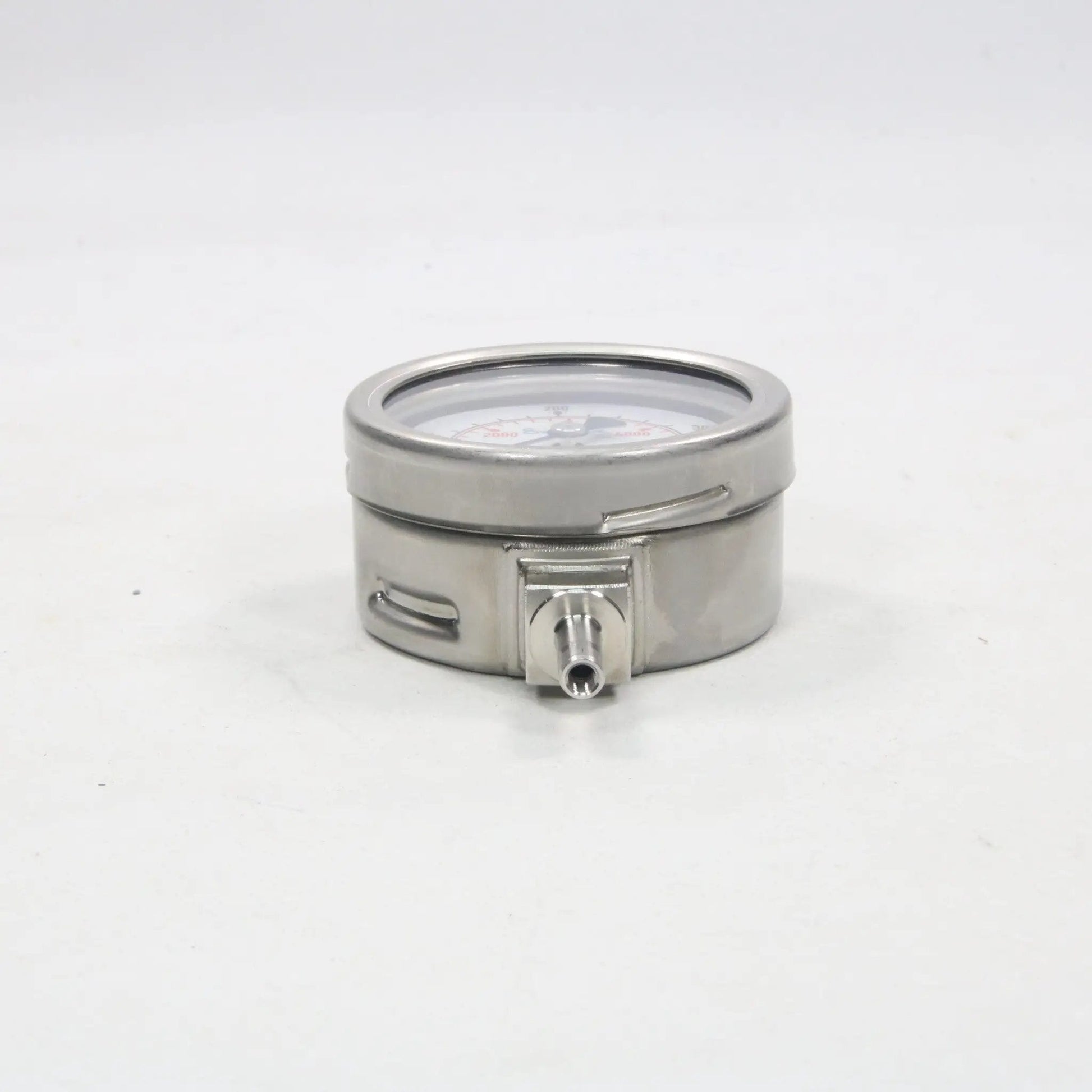

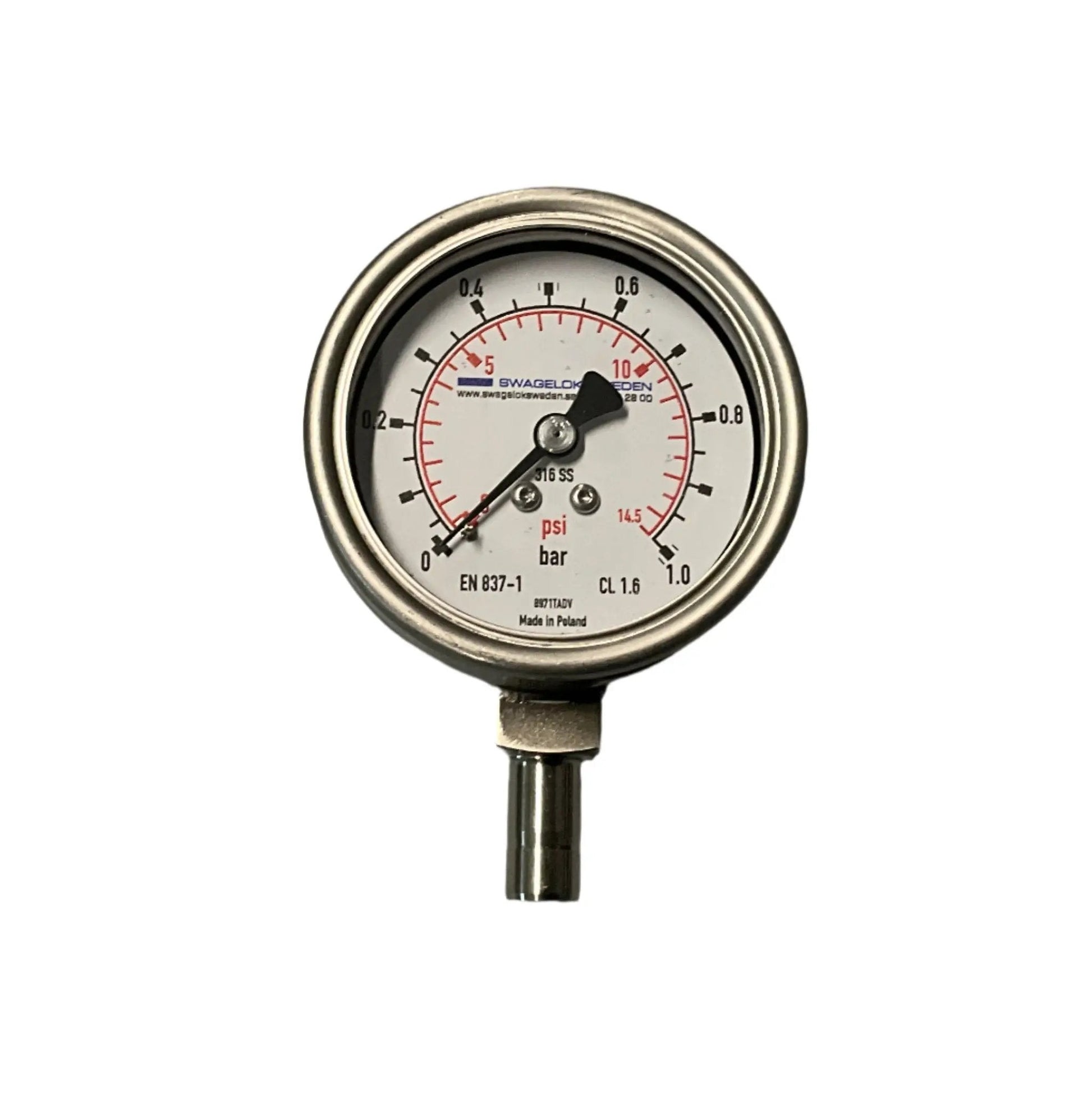

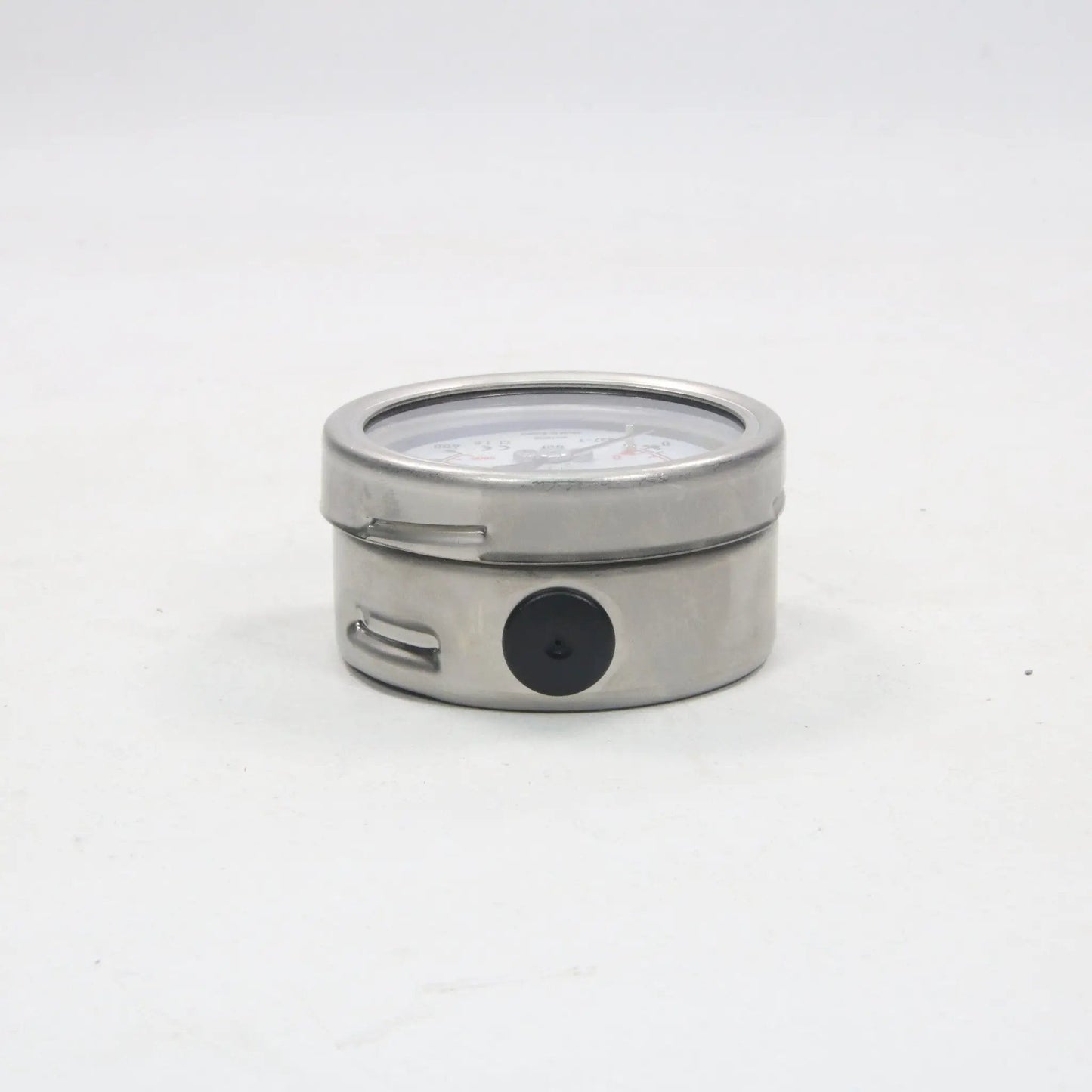

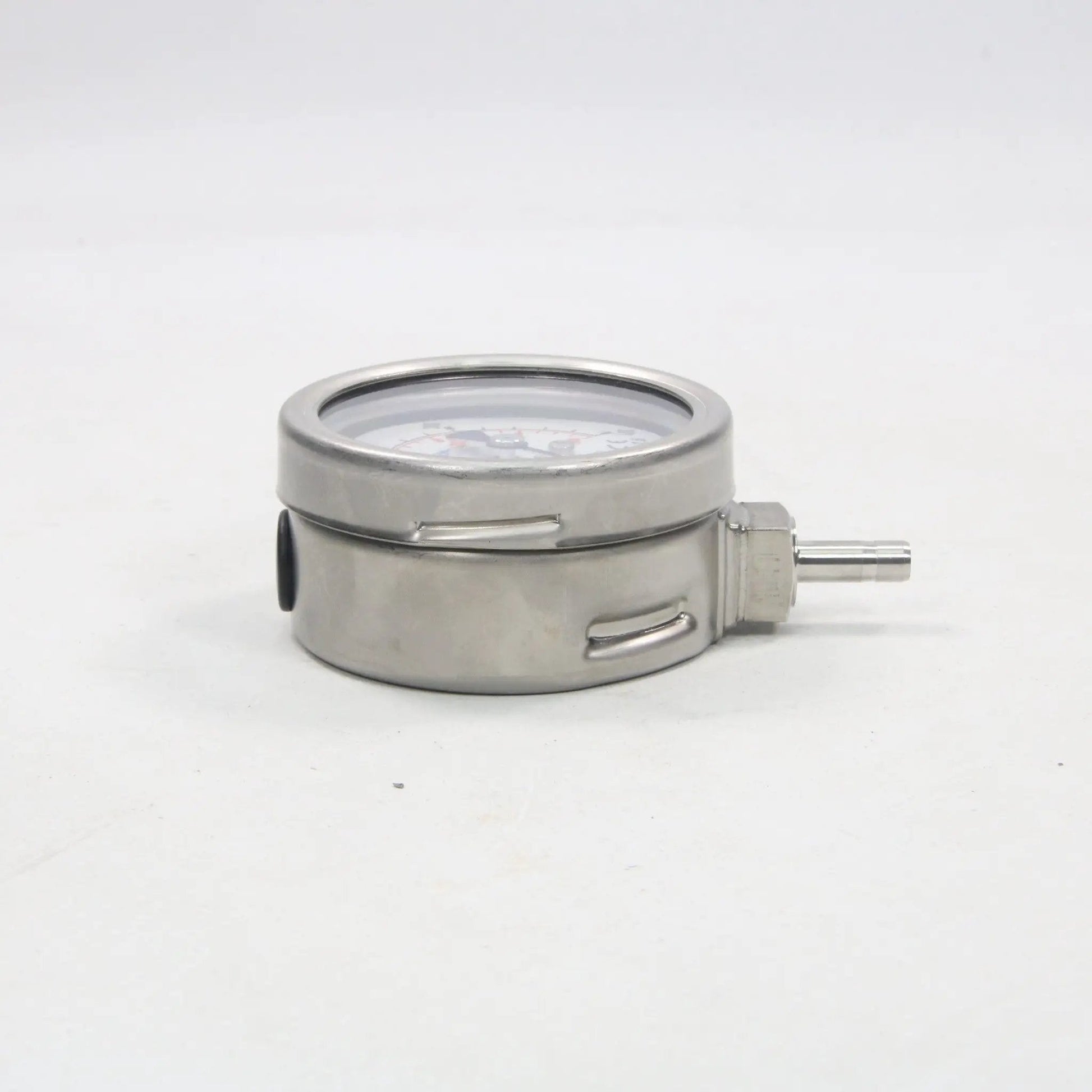

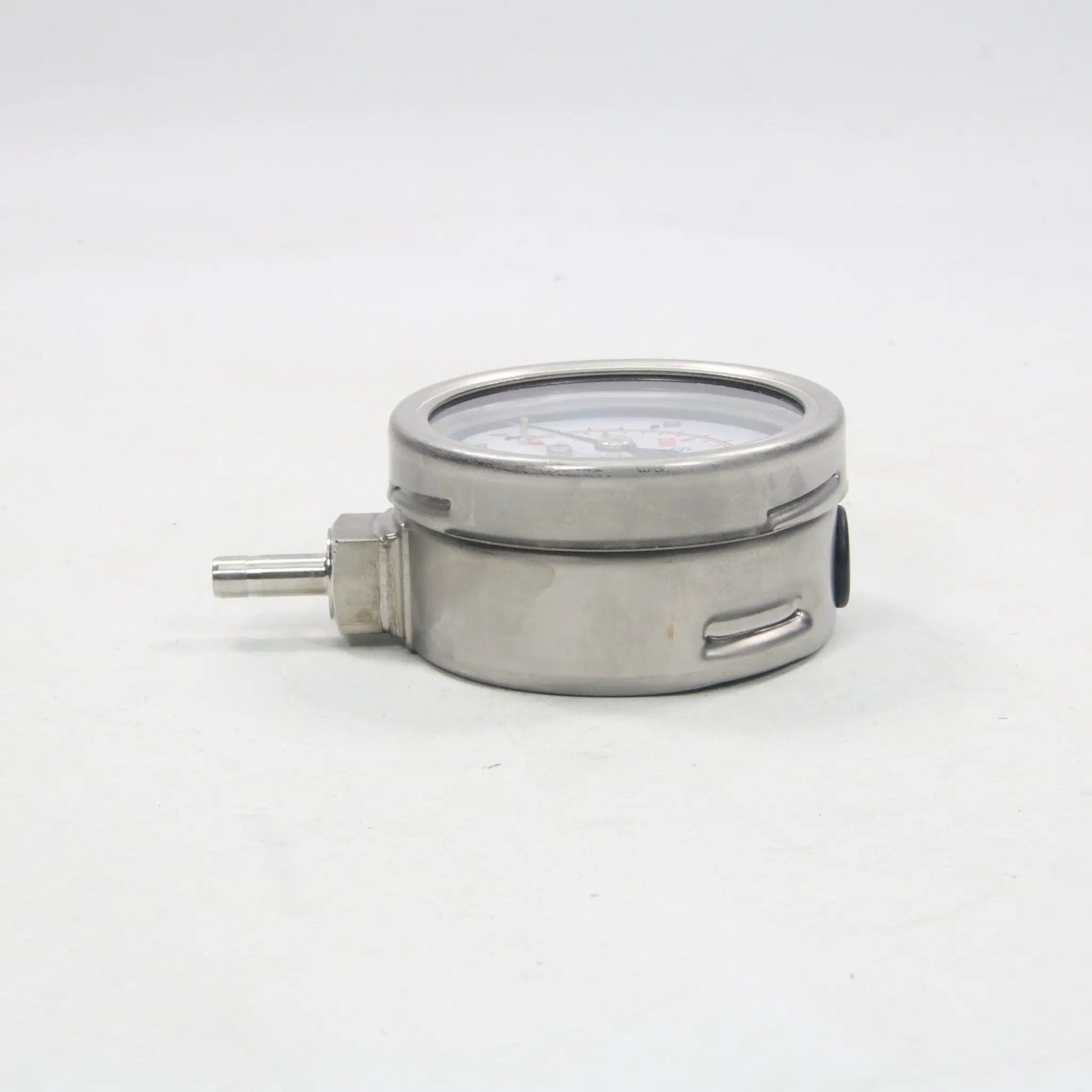

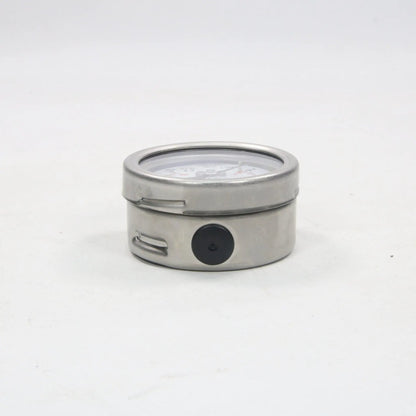

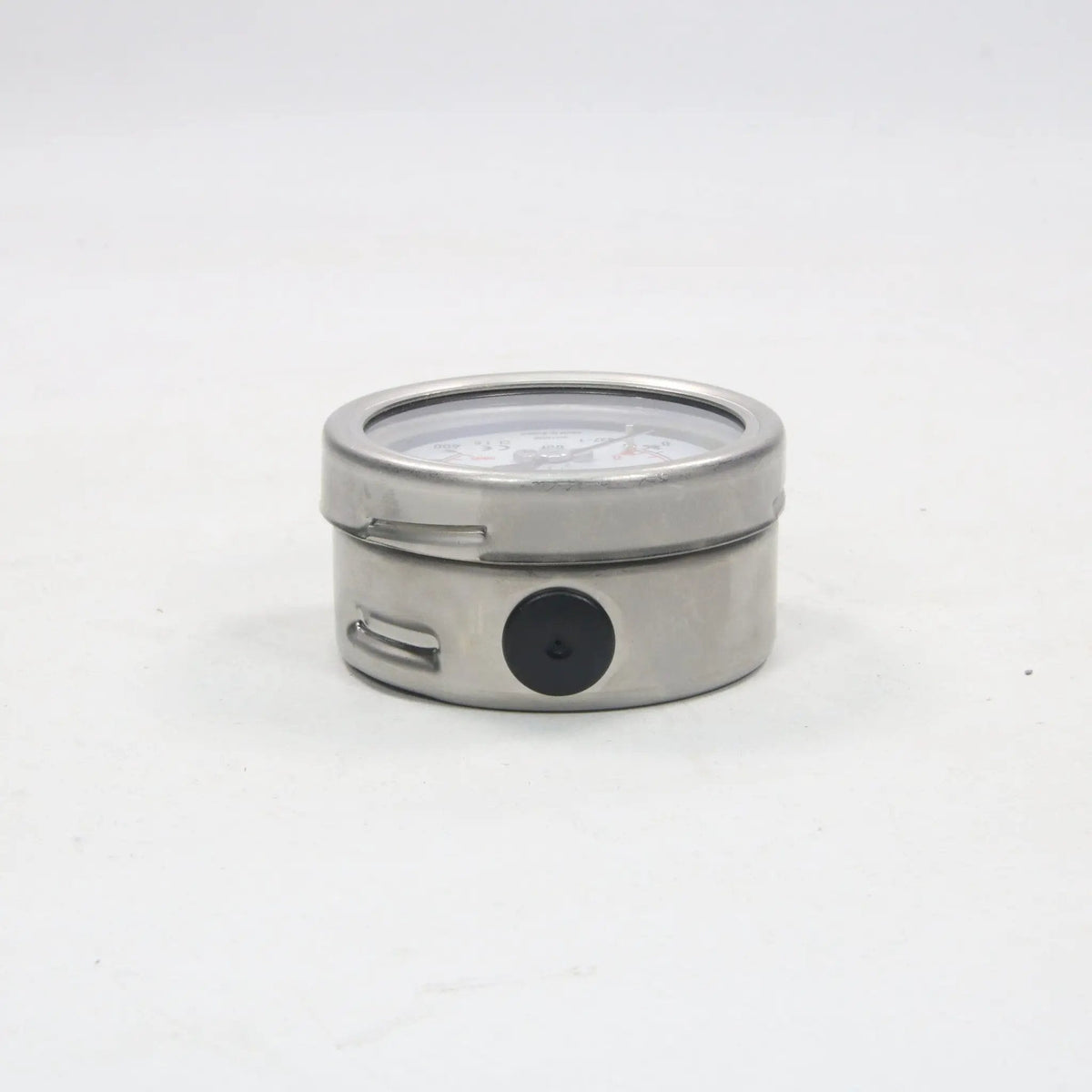

Brand: Swagelok
Series: PGI Series Industrial Pressure Gauge
Part Number: PGI‑63B‑BG1‑LBHX‑9314
Specifications:
Dial Size: 63 mm (2 ½ in.)
Mounting: Lower Mount (L)
Fitting Type: 3/8 in. Swagelok tube adapter (BG)
Liquid Fill: Unfilled
Pointer Type: Adjustable
Pressure Range: 0–1 bar
Construction Materials:
Bourdon Tube: 316 stainless steel
Case: 304 stainless steel
Lens: Polycarbonate
Lens Gasket: Buna N
Pointer: Aluminum
Accuracy: ±1.5 % of span for 63 mm dial (ASME B40.100 Grade B / EN 837‑1 Class 1.6 / JIS B7505 Class 1.6)
Weather Protection: NEMA 4X / IP65
