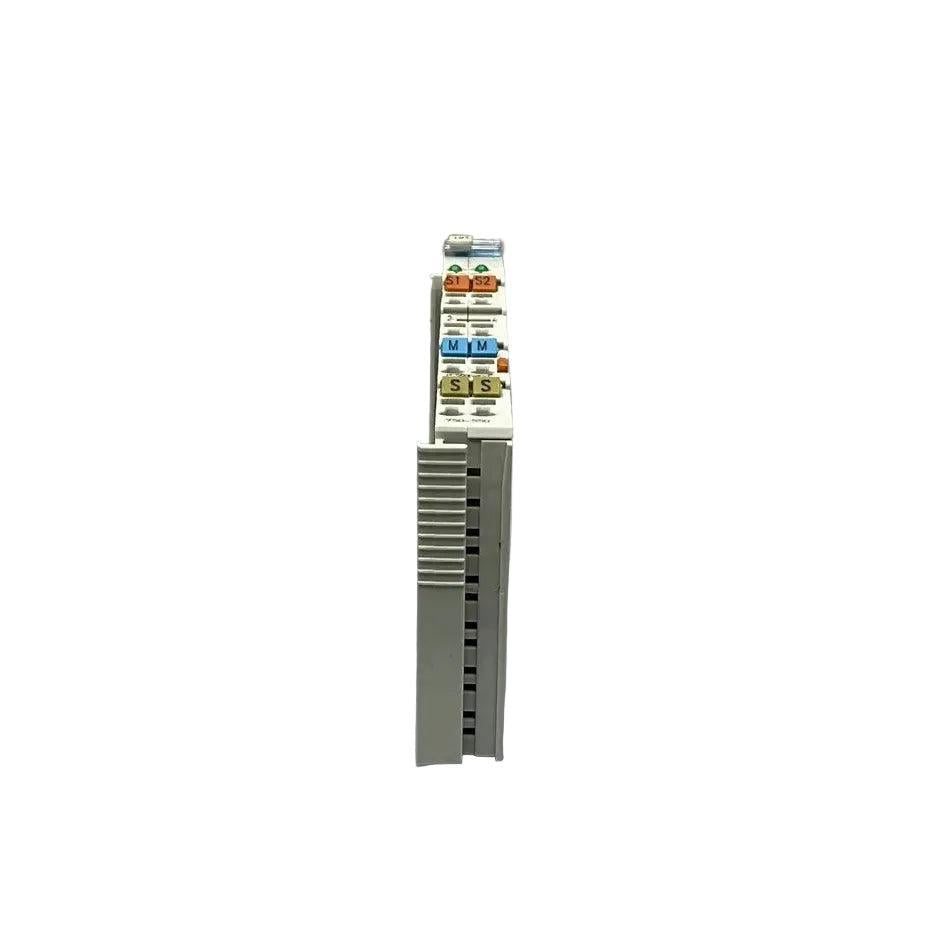

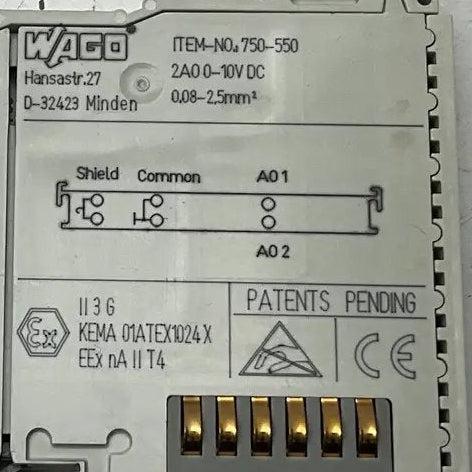

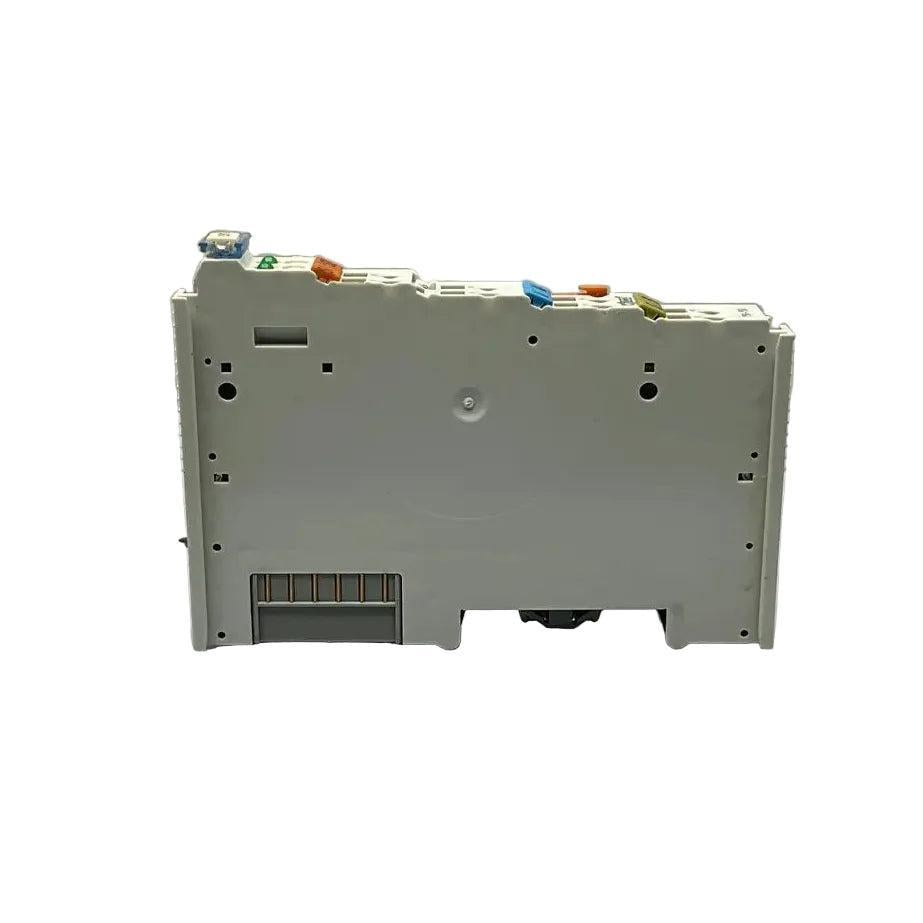

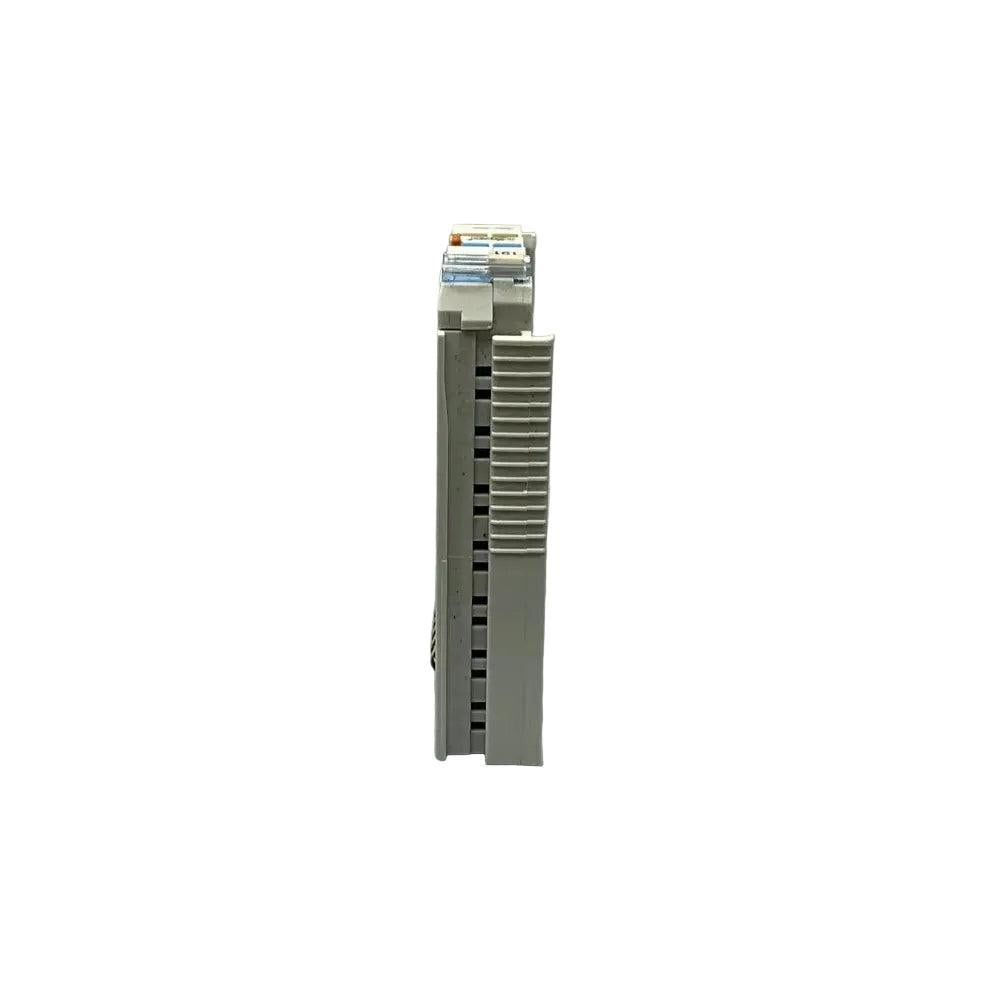

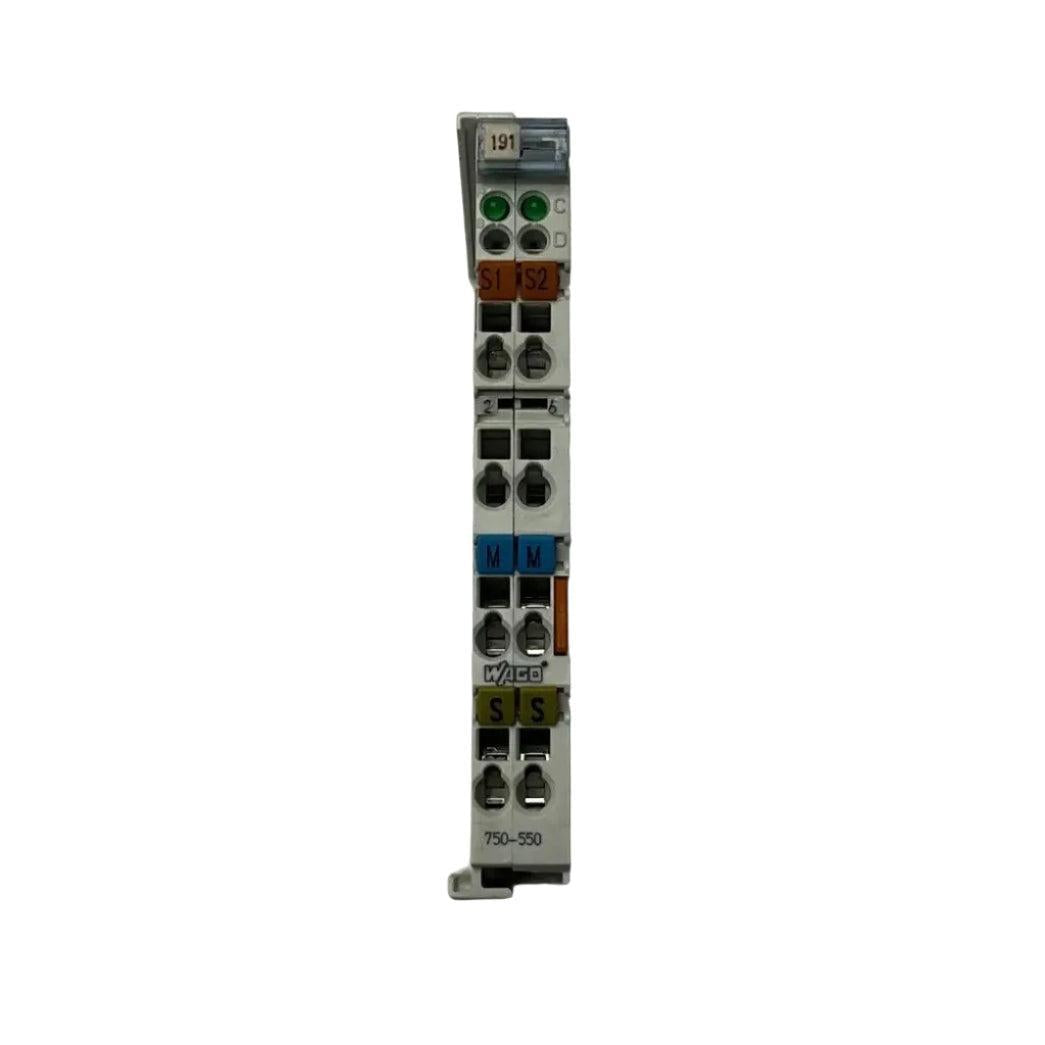

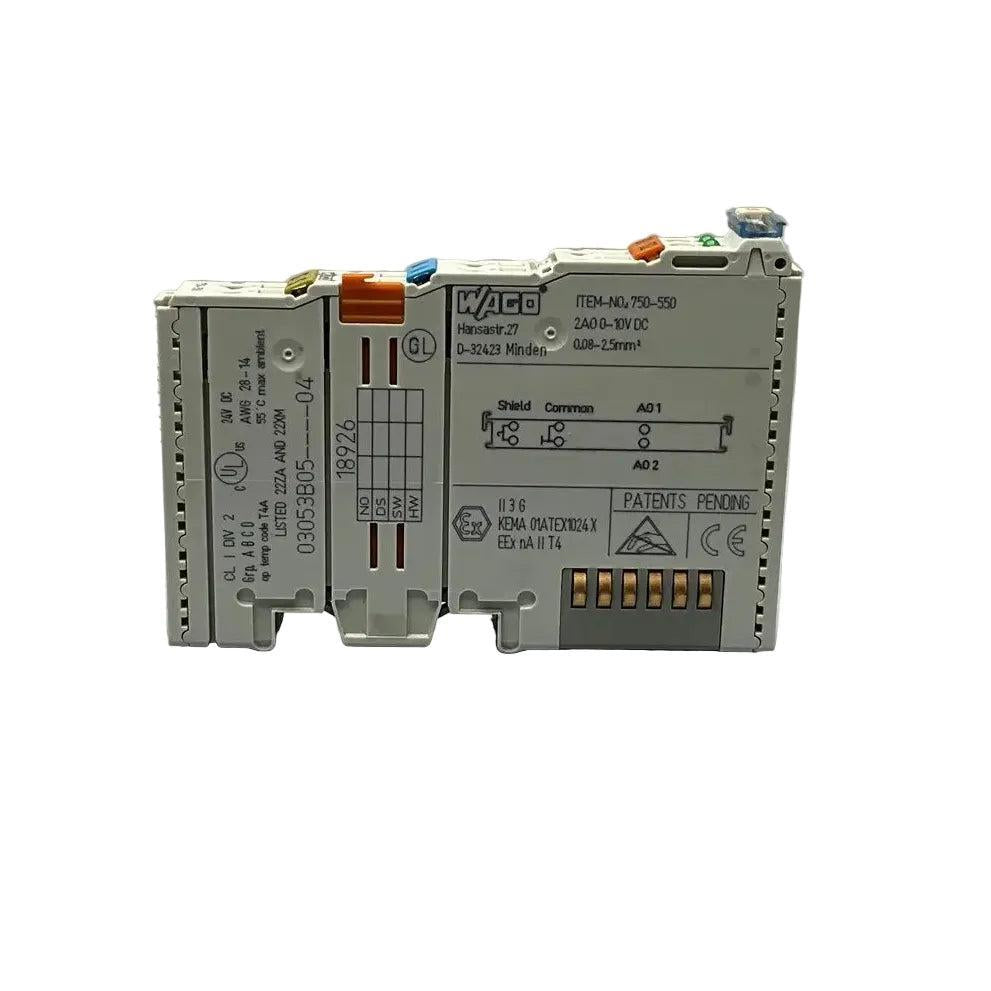

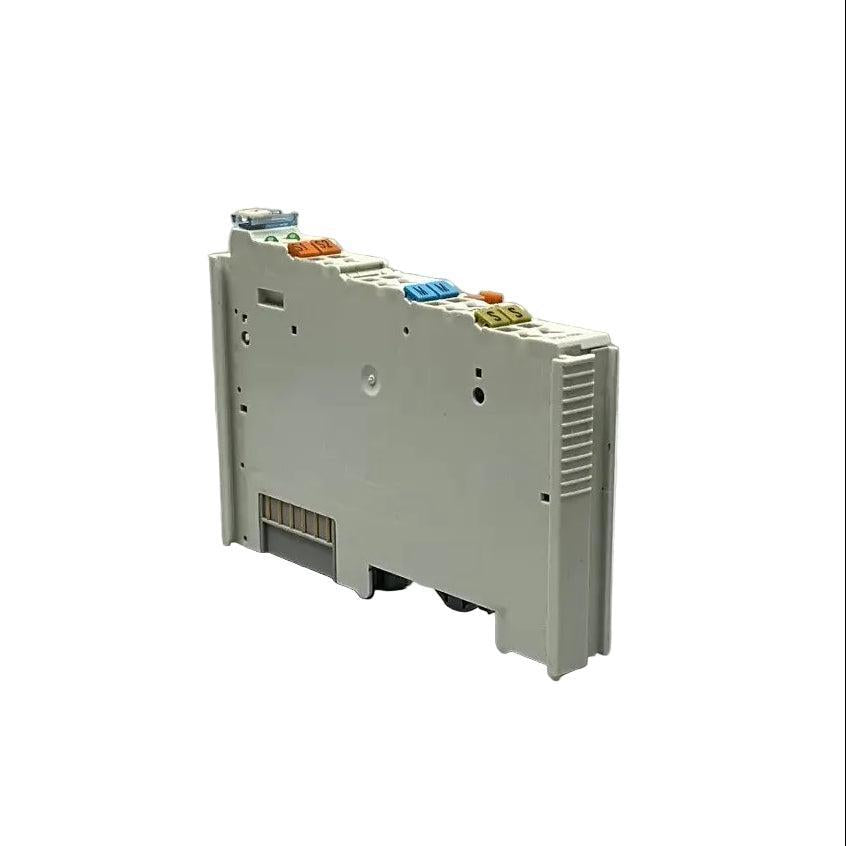

- Brand: WAGO
- Model: 2AO 0-10V DC
- Type: Analog Output Module
- Part Number: 750-550
- Technical Specs:
- Number of Outputs: 2 channels
- Output Signal Type: Voltage (0 … 10 VDC)
- Resolution: 12 bits
- Load Impedance: > 5 kΩ
- Conversion Time: Typ. 2 ms
- Measuring Error: ±0.1% of upper-range value (at 25°C)
- Temperature Coefficient: ±0.01% / K
- Power Supply: System voltage (5 VDC) via internal bus
- Current Consumption (System 5V): Typ. 65 mA
- Isolation: 500 V system/field
- Wiring Connection: CAGE CLAMP® spring pressure connection
- Mounting Type: DIN-35 Rail
- Protection Rating: IP20
- Operating Temperature: -20°C to +60°C
Weight: 70 g
Dimensions: 12 mm x 100 mm x 70 mm
Country of Origin: Germany
HS Code: 8538.90.99
